1212FPS-4R7N-01 | Fastron
Power choke, SMD 1212, 4.7 µH, 1.25 A, 1212FPS-4R7N-01
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Available in 4 Days: 1,354 pcs.
Leadtime: 18 Weeks **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.6069 €
50 pcs.
0.4760 €
250 pcs.
0.4046 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Power inductor, 1212FPS-4R7N-01, Fastron
Chip Type
Features
- The chip power inductor 11212FPS-4R7N-01 is equipped with a high flux density ferrite core
- Small footprints 3x3, 4x4, 6x6 mm and flat flat profile
- The Inductance range is from 0,5µH to 220µH
- Rated Current up to 6.5A
- The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
- These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant
Applications
- Suitable for circuits where high current saturation is critical
- When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
- Backlight for Tablet Displays

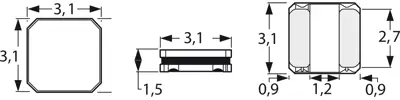

Technical specifications
| Ausführung | Leistungsdrossel | |
| Bauform | SMD 1212 | |
| Breite | 3.1 mm | |
| Gleichstrom | 1.25 A | |
| Gleichstromwiderstand | 136 mΩ | |
| Höhe | 1.5 mm | |
| Induktivität | 4.7 µH | |
| Länge | 3.1 mm | |
| Sättigungsstrom | 1.08 A | |
| Toleranz | ±30 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
