1616FPS-2R7M-01 | Fastron

Power choke, SMD 1515, 2.7 µH, 2.3 A, 1616FPS-2R7M-01

Order No.: 75D6305
EAN: 4099889040982
MPN:
1616FPS-2R7M-01
Series: 1616FPS
Fastron

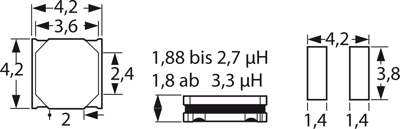

1616FPS-2R7M-01 Fastron Fixed Inductors Image 1

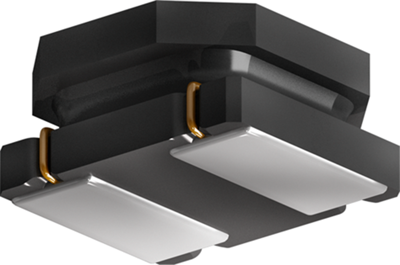

1616FPS-2R7M-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 4 Days: 1,588 pcs.
Leadtime: 18 Weeks **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1035 pcs.
0.3689 €
3000 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD Power inductor, 1616FPS-2R7M-01, Fastron

Chip Type

Features

  • The chip power inductor 1616FPS-2R7M-01 is equipped with a high flux density ferrite core
  • Small footprints 3x3, 4x4, 6x6 mm and flat flat profile
  • The Inductance range is from 0,5µH to 220µH
  • Rated Current up to 6.5A
  • The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
  • These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant

Applications

  • Suitable for circuits where high current saturation is critical
  • When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
  • Backlight for Tablet Displays
Technical specifications
Version power choke
Design SMD 1515
Width 4.2 mm
DC current 2.3 A
DC resistance 0.052 Ω
Height 1.88 mm
Inductance 2.7 µH
Length 4.2 mm
Measuring frequency 100 kHz
Saturation current 2.4 A
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Bulk with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
