1812AS-1R5J-01 | Fastron
RF choke, SMD 1812, 1.5 µH, 430 mA, 1812AS-1R5J-01
Unit Price (€ / pc.)
0.6069 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

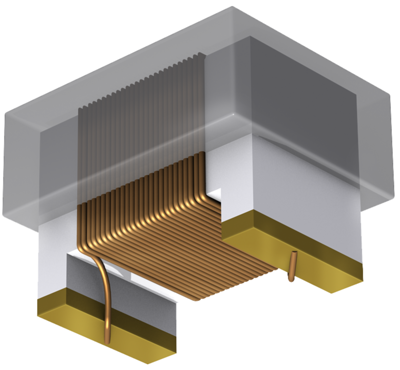

Chip inductor for RF applications, type Fastron 1812AS./1812AF.
Size 1812, molded in epoxy resin. Solderable up to max. +260 °C/10 s
With ceramic carrier material, type 1812AS.
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | SMD 1812 | |
| Breite | 3.8 mm | |
| Gleichstrom | 430 mA | |
| Gleichstromwiderstand | 1.6 Ω | |
| Gütefaktor Q | Q 60 | |
| Höhe | 3.4 mm | |
| Induktivität | 1.5 µH | |
| Länge | 4.9 mm | |
| Messfrequenz | 50 MHz | |
| Toleranz | ±5 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
