242408FPS-220M-01 | Fastron
Power choke, SMD 2424, 22 µH, 1 A, 242408FPS-220M-01
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Available in 4 Days: 1,400 pcs.
Leadtime: 18 Weeks **

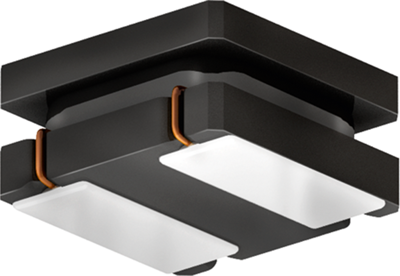

SMD Shielded inductor, 242408FPS-220M-01, Fastron
This Inudctor provides good solderability with lead free tinned Terminals and is RoHS compliant. Suitable for circuits where high current saturation is critical. When small size matters, only 1.5 mm and higher profile for DC/DC converters e.g in portable devices or backlight for tablet displays.
Features
- High flux density ferrite core
- Magnetically shielded with a ferrite-epoxy resin

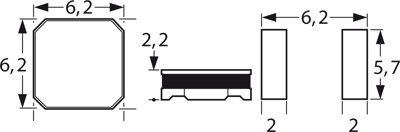

Technical specifications
| Version | power choke | |
| Design | SMD 2424 | |
| Width | 6.2 mm | |
| DC current | 1 A | |
| DC resistance | 204 mΩ | |
| Height | 2.2 mm | |
| Inductance | 22 µH | |
| Length | 6.2 mm | |
| Measuring frequency | 100 kHz | |
| Saturation current | 1.1 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
