MICC-270K-02 | Fastron
RF choke, axial, 27 µH, 315 mA, MICC-270K-02
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 4 Days: 1,500 pcs.
Leadtime: 18 Weeks **

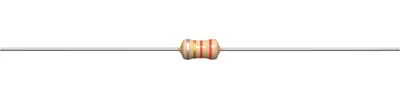

RF inductor, MICC-270K-02, FASTRON
The MICC-270K-02 is a leaded inductor, that is used to block higher-frequency while passing direct current (DC) and lower-frequencies of alternating current (AC) in an electrical circuit.
Features
- Very wide inductance range
- High Q values
Applications
- Interference suppression
- Decoupling
- RF blocking and filtering
- Automotive electronics
- Electronis household appliances
- Entertainment electronics
Technical specifications
| Version | RF choke | |
| Design | axial | |
| DC current | 315 mA | |
| DC resistance | 1 Ω | |
| Quality Q | Q 60 | |
| Inductance | 27 µH | |

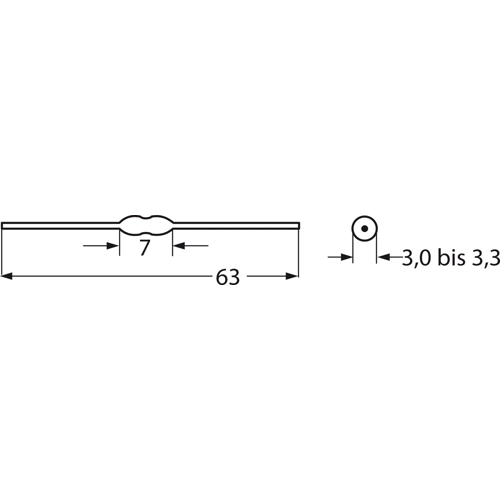

| Length | 7 mm | |
| Measuring frequency | 2.52 MHz | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
