MICC-2R2K-02 | Fastron

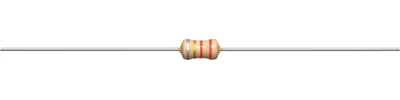

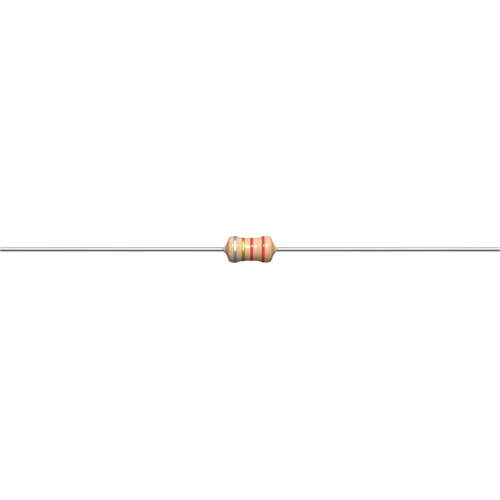

RF choke, axial, 2.2 µH, 520 mA, MICC-2R2K-02
Unit Price (€ / pc.)
0.4284 € *
Available: 1,200 pcs.
Leadtime: 18 Weeks **
RF inductor, MICC-2R2K-02, FASTRON
The MICC-2R2K-02 is a leaded inductor, that is used to block higher-frequency while passing direct current (DC) and lower-frequencies of alternating current (AC) in an electrical circuit.
Features
- Very wide inductance range
- High Q values
Applications
- Interference suppression
- Decoupling
- RF blocking and filtering
- Automotive electronics
- Electronis household appliances
- Entertainment electronics
Technical specifications
| Version | RF choke | |
| Design | axial | |
| DC current | 520 mA | |
| DC resistance | 0.35 Ω | |
| Quality Q | Q 40 | |
| Inductance | 2.2 µH | |
| Length | 7 mm | |
| Measuring frequency | 7.96 MHz | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Ammopack with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
