MICC-R10M-02 | Fastron
RF choke, axial, 100 nH, 1.1 A, MICC-R10M-02
Unit Price (€ / pc.)
0.4641 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

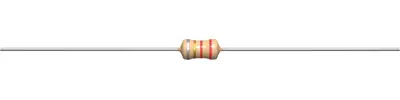

RF inductor, MICC-R10M-02, FASTRON
The MICC-R10M-02 is a leaded inductor, that is used to block higher-frequency while passing direct current (DC) and lower-frequencies of alternating current (AC) in an electrical circuit.
Features
- Very wide inductance range
- High Q values
Applications
- Interference suppression
- Decoupling
- RF blocking and filtering
- Automotive electronics
- Electronis household appliances
- Entertainment electronics
Technical specifications
| Ausführung | HF-Drossel | |
| Bauform | axial | |
| Gleichstrom | 1.1 A | |
| Gleichstromwiderstand | 0.11 Ω | |
| Gütefaktor Q | Q 35 | |
| Induktivität | 100 nH | |
| Länge | 7 mm | |
| Messfrequenz | 25.2 MHz | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Ammopack mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
