MISC-140M-01 | Fastron

Suppressor choke, axial, 14 µH, 700 mA, MISC-140M-01

Order No.: 74D364
EAN: 4099889010084
MPN:
MISC-140M-01
Series: MISC
Fastron

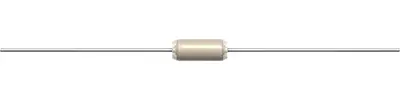

MISC-140M-01 Fastron Fixed Inductors Image 1

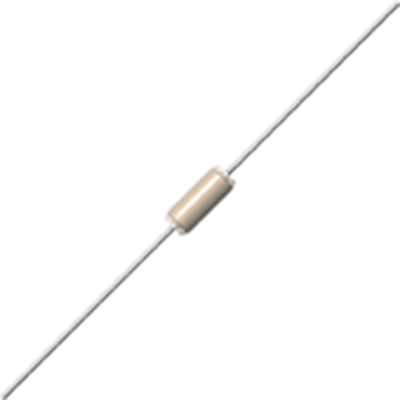

MISC-140M-01 Fastron Fixed Inductors Image 2
MISC-140M-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
1.5351 € *
Available: 350 pcs.
Next delivery: 1,500 pcs. on 2025-03-04
Leadtime: 30 Weeks **
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.2852 €
100 pcs.
1.0948 €
250 pcs.
0.9996 €
1000 pcs.
0.9044 €
*incl. VAT plus shipping costs
**Subject to prior sale

Suppressor inductor, MISC-140M-01, FASTRON

The MISC-140M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.

Features

  • High rated current
  • Low DC resistance

Applications

  • RF blocking, filtering and decoupling
  • Entertainment devices
  • Interference suppression
Technical specifications
Version suppressor choke
Design axial
DC current 700 mA
DC resistance 912 mΩ
Inductance 14 µH
Length 12 mm
Measuring frequency 20 kHz
Saturation current 700 mA
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1,500 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
