MISC-300M-01 | Fastron

Suppressor choke, axial, 30 µH, 400 mA, MISC-300M-01

Order No.: 74D365
EAN: 4099889010107
MPN:
MISC-300M-01
Series: MISC
Fastron

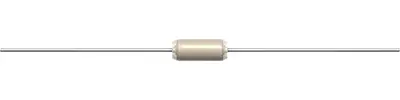

MISC-300M-01 Fastron Fixed Inductors Image 1

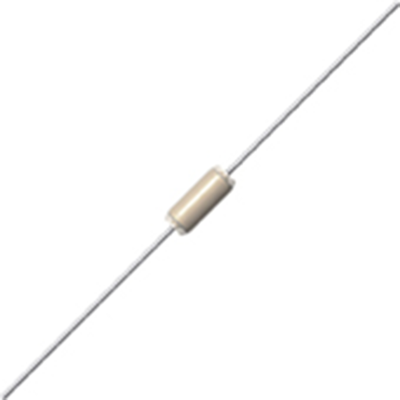

MISC-300M-01 Fastron Fixed Inductors Image 2
MISC-300M-01 Fastron Fixed Inductors Image 3
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available: 1,220 pcs.
Available in 4 Days: 1,460 pcs.
Leadtime: 18 Weeks **
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0591 €
50 pcs.
0.9401 €
250 pcs.
0.8211 €
1000 pcs.
0.7140 €
2500 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale

Suppressor inductor, MISC-300M-01, FASTRON

The MISC-300M-01 is a suppression coil which protects sensitive equipment from the transient voltage (back EMF) generated from the coil during de-energization.

Features

  • High rated current
  • Low DC resistance

Applications

  • RF blocking, filtering and decoupling
  • Entertainment devices
  • Interference suppression
Technical specifications
Version suppressor choke
Design axial
DC current 400 mA
DC resistance 3.24 Ω
Inductance 30 µH
Length 12 mm
Measuring frequency 20 kHz
Saturation current 400 mA
Tolerance ±20 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
