PISA4728-150M-04 | Fastron

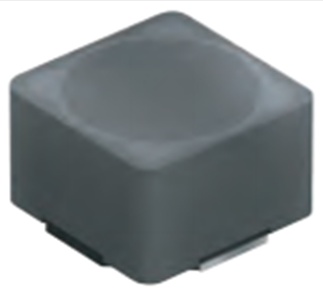

Power choke, SMD 4728, 15 µH, 4.5 A, PISA4728-150M-04
Unit Price (€ / pc.)
2.0944 € *
Available: 0 pcs.
Available in 4 Days: 200 pcs.
Leadtime: 18 Weeks **
Shielded surface mount, PISA4728-150M-04, Fastron
Power inductor PISA4728-150M-04 can withstand a wide temperature range. The inductance value is suitable for high rated currents. This product has a high reliability and can be assembled by surface mount technology. Low DC resistance keeps power losses to a minimum. It is also suitable for filtering of supply voltages, coupling, decoupling, automotive electronics and network switching systems.
Applications
- This component is widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters
Technical specifications
| Ausführung | Leistungsdrossel | |
| Bauform | SMD 4728 | |
| Breite | 12.3 mm | |
| Gleichstrom | 4.5 A | |
| Gleichstromwiderstand | 27 mΩ | |
| Höhe | 8.2 mm | |
| Induktivität | 15 µH | |
| Länge | 12.3 mm | |
| Messfrequenz | 1 kHz | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
