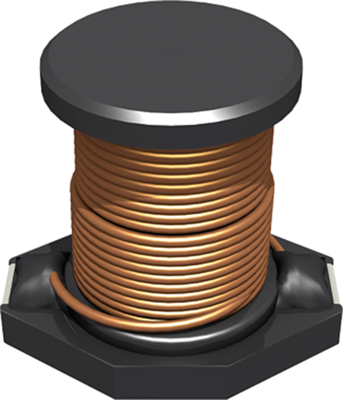

Power choke, SMD, 33 µH, 3.1 A, PISN-330M-04
Unit Price (€ / pc.)
1.8445 € *
Available: 104 pcs.
Available in 4 Days: 127 pcs.
Leadtime: 18 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.5351 €
100 pcs.
1.3090 €
250 pcs.
1.1900 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Power inductor, PISN-330M-04, Fastron
The PISN-330M-04 is used as energy storage devices in switched-mode power devices to produce DC current.
Features
- Power inductors can withstand a wide temperature range
- The inductance values range from 1.0 µH to 10000 µH and they are suitable for high rated currents
- They have a high reliability and can be assembled by surface mount technology
- Their DC resistance keeps power losses to a minimum
- They are also suitable for Filtering of supply voltages, Coupling, Decoupling, Automotive electronics and Network switching systems
Applications
- These components are widely used in power supplies for VTR, LCD TV, notebooks, PC and DC/DC converters

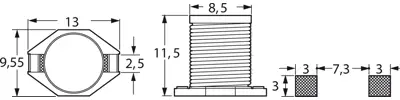

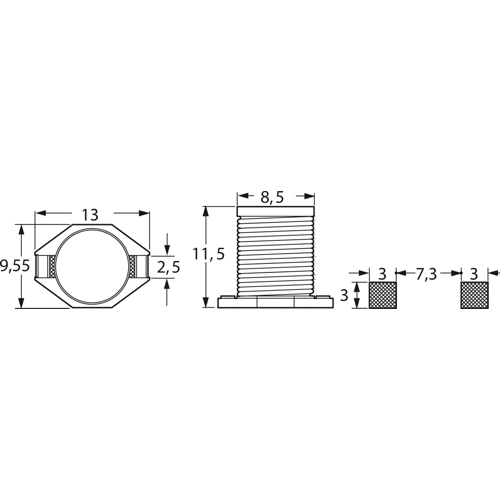

Technical specifications
| Version | power choke | |
| Design | SMD | |
| Width | 9.55 mm | |
| DC current | 3.1 A | |
| DC resistance | 0.065 Ω | |
| Height | 11.5 mm | |
| Inductance | 33 µH | |
| Length | 13 mm | |
| Measuring frequency | 100 kHz | |
| Saturation current | 4.3 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
