PIST-101K-04 | Fastron

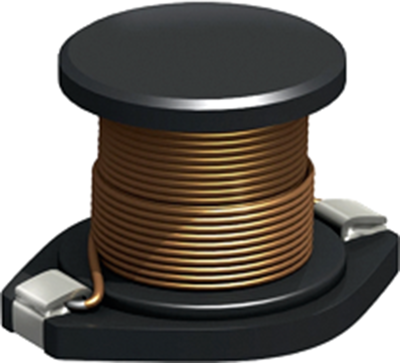

Power choke, SMD, 100 µH, 1.6 A, PIST-101K-04
Unit Price (€ / pc.)
1.7612 € *
Available: 100 pcs.
Leadtime: 18 Weeks **
Total Price:
5.28 € *
Price list
Quantity
Price per unit*
3 pcs.
1.7612 €
25 pcs.
1.5708 €
150 pcs.
1.4042 €
500 pcs.
1.2852 €
1000 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Power inductor, PIST-101K-04, Fastron
The PIST-101K-04 is used as energy storage devices in switched-mode power devices to produce DC current.
Features
- Wire wound chip inductors are designed particularly for RF applications that require optimal Q on high frequency circuits
- In addition, their encapsulation not only protects the winding but also allows surface mount assembly
- It comes in compact sizes (from 0402 to 1812) available in reel packing
Applications
- Used in LC resonant circuits such as oscillator and signal generators, impendance matching, RF filters etc.
- Mobile Telecommunication: GSM, CDMA, TCDMA, cordless phones, 2 way radio
- Automotive Subsystems: TPMS, Keyless Entry, Anti-Theft, GPS
- Wireless Communication: W-LAN, WIFI, WIMAX, RFID, Bluetooth
- Non-magnetic versions for medical imaging applications: ASM series
Technical specifications
| Ausführung | Leistungsdrossel | |
| Bauform | SMD | |
| Breite | 15.2 mm | |
| Gleichstrom | 1.6 A | |
| Gleichstromwiderstand | 200 mΩ | |
| Höhe | 12 mm | |
| Induktivität | 100 µH | |
| Länge | 18.7 mm | |
| Messfrequenz | 100 kHz | |
| Sättigungsstrom | 4.1 A | |
| Toleranz | ±10 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
