XHBCC-101K-01 | Fastron

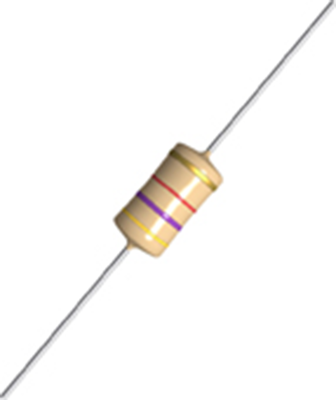

RF choke, axial, 100 µH, 1.62 A, XHBCC-101K-01
Unit Price (€ / pc.)
1.8445 € *
Available: 354 pcs.
Available in 4 Days: 1,004 pcs.
Leadtime: 18 Weeks **
Total Price:
1.84 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8445 €
10 pcs.
1.1543 €
100 pcs.
0.9282 €
200 pcs.
0.8687 €
1000 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale
RF inductor, XHBCC-101K-01, FASTRON
The XHBCC-101K-01 is a leaded inductor which uses magnetic field produced by the effect of coils or windings of a conducting wire. It holds a charge or power after a certain time and can maintain that power source even when an outside supply is removed.
Features
- Very wide inductance
- High Q value
Applications
- Decoupling and interference suppression
- RF blocking and filtering
- Automotive electronics
- Lighting devices
Technical specifications
| Version | RF choke | |
| Design | axial | |
| DC current | 1.62 A | |
| DC resistance | 240 mΩ | |
| Quality Q | Q 30 | |
| Inductance | 100 µH | |
| Length | 16 mm | |
| Measuring frequency | 796 kHz | |
| Saturation current | 1.86 A | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
