F11105S090L085 | Feinmetall

Standard test pin with probe, inner cone, Ø 0.69 mm, travel  2.54 mm, pitch 1.27 mm, L 16.5 mm, F11105S090L085

Order No.: 11H5554
EAN: 4099889466447
MPN:
F11105S090L085
Series: F111

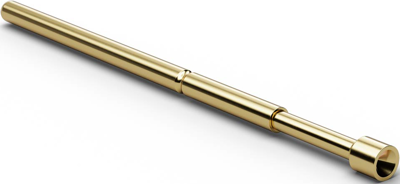

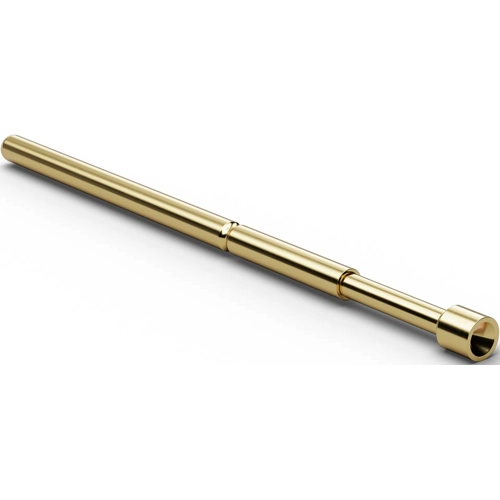

F11105S090L085 Feinmetall Contact Probes Image 1

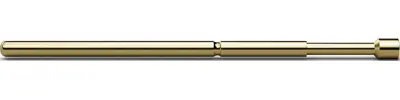

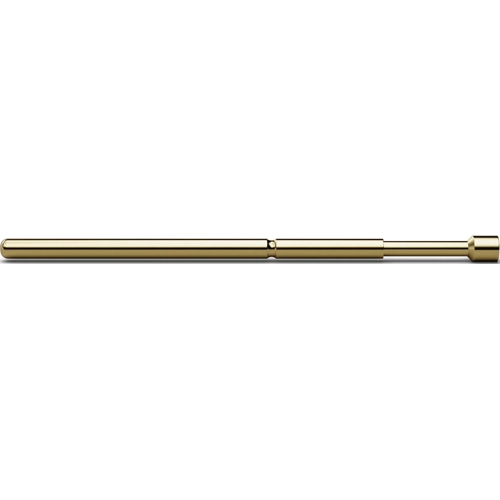

F11105S090L085 Feinmetall Contact Probes Image 2

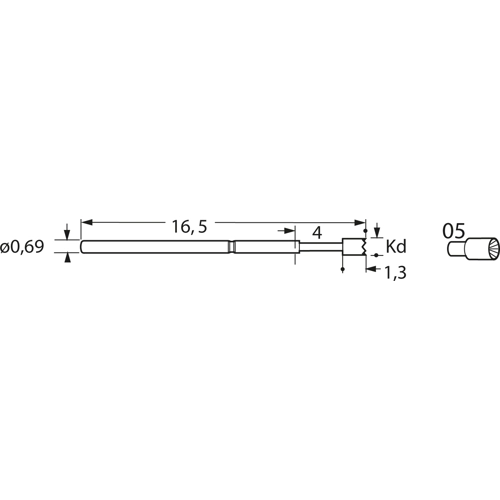

F11105S090L085 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
4.0817 € *
Available: 121 pcs.
Leadtime: 1 Week **
Total Price:
4.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.0817 €

For use on PCBs with/without components and for SMD applications.

Projecting height: 4.0 mm

Maximum spring travel: 2.54 mm

Recommended spring travel: 2.0 mm

Prestress: 20 cN/m

Spring force at recommended spring travel: 85 cN ±20 % (type F111.18 Ll UCGold = 100 cN)

Contact tolerance: ±0.09 mm

Operating temperatures: - 20 to +80 °C

Maximum continuous current: 3.0 A

Typical contact resistance: 65 mohm

Barrel: gold-plated new silver

Spring: silver-plated spring steel

Tip designs: 01 conical shaft 90°, 03 conical shaft 60°, 05 concave (cup), 07 hexagonal (fluted star) 90°, 09 inverted hexagonal crown, 12 step form rounded head (bullet nose), 14 four-point crown head (self-cleaning), 18 conical shaft (spear) 30°, 21 four-point crown head (self-cleaning). Table index: type, plunger with tip design, tip diameter TD, material, finish (LG is long-life gold for particularly long endurance).

Table index: type, plunger with tip design, tip diameter TD, material, finish (LG is long-life gold for particularly long endurance).

Type: F111.05, probe with plunger tip 05, TD 0.9 mm, steel, long - life gold

Technical specifications
Head shape Innenkonus
Rated current 3 A
Stroke 2.54 mm
Grid 1.27 mm
Length 16.5 mm
diameter 0.69 mm
Material Stahl
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
