F11118S053N085 | Feinmetall

Standard test pin with probe, cone, Ø 0.69 mm, travel  2.54 mm, pitch 1.27 mm, L 16.5 mm, F11118S053N085

Order No.: 11H5564
EAN: 4099889466492
MPN:
F11118S053N085
Series: F111

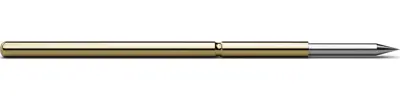

F11118S053N085 Feinmetall Contact Probes Image 1

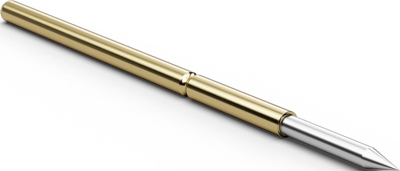

F11118S053N085 Feinmetall Contact Probes Image 2

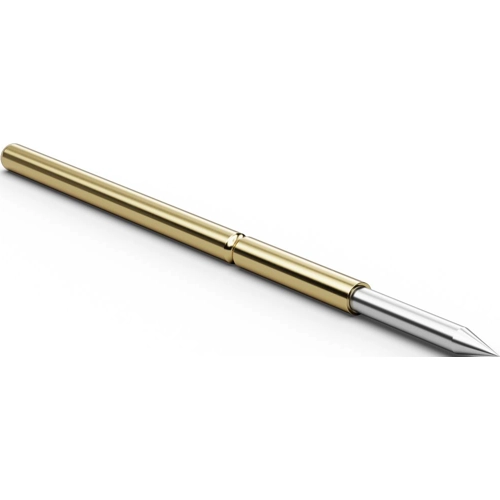

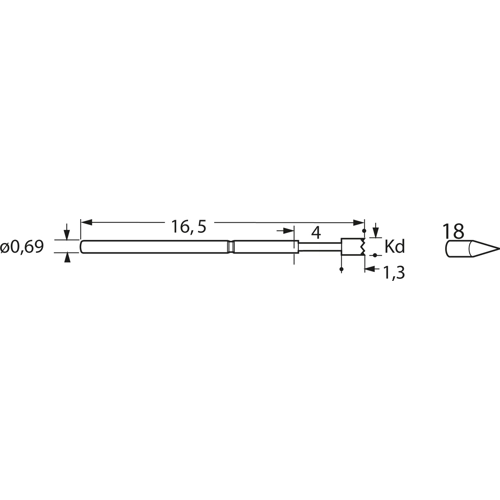

F11118S053N085 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
5.2241 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
5.22 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2241 €
10 pcs.
4.5458 €
100 pcs.
4.2126 €
500 pcs.
3.8556 €
1000 pcs.
3.5224 €
*incl. VAT plus shipping costs
**Subject to prior sale

For use on PCBs with/without components and for SMD applications.

Projecting height: 4.0 mm

Maximum spring travel: 2.54 mm

Recommended spring travel: 2.0 mm

Prestress: 20 cN/m

Spring force at recommended spring travel: 85 cN ±20 % (type F111.18 Ll UCGold = 100 cN)

Contact tolerance: ±0.09 mm

Operating temperatures: - 20 to +80 °C

Maximum continuous current: 3.0 A

Typical contact resistance: 65 mohm

Barrel: gold-plated new silver

Spring: silver-plated spring steel

Tip designs: 01 conical shaft 90°, 03 conical shaft 60°, 05 concave (cup), 07 hexagonal (fluted star) 90°, 09 inverted hexagonal crown, 12 step form rounded head (bullet nose), 14 four-point crown head (self-cleaning), 18 conical shaft (spear) 30°, 21 four-point crown head (self-cleaning). Table index: type, plunger with tip design, tip diameter TD, material, finish (LG is long-life gold for particularly long endurance).

Table index: type, plunger with tip design, tip diameter TD, material, finish (LG is long-life gold for particularly long endurance).

Type: F111.18, probe with plunger tip 18, TD 0.53 mm, steel, nickel

Technical specifications
Head shape Kegel
Rated current 3 A
Stroke 2.54 mm
Grid 1.27 mm
Length 16.5 mm
diameter 0.69 mm
Material Stahl
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
