F20701S036L050 | Feinmetall

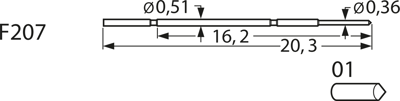

Fine grid test probe with probe head, cone, Ø 0.36 mm, travel  2.5 mm, pitch 0.7 mm, L 20.3 mm, F20701S036L050

Order No.: 11H4604
EAN: 4099889465723
MPN:
F20701S036L050
Series: F207
Feinmetall
F20701S036L050 Feinmetall Contact Probes
Image may differ
Unit Price (€ / pc.)
4.998 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
4.998 €

Contact pins with spring on one end, primarily used in test sockets for component testing, joining of the contact pins via connection element H207AE.

Projection height: 4.0 mm

Recommended spring travel: 2.0 mm

Maximum spring travel: 2.5 mm

Prestress: 10 cN

Spring force at recommended spring travel: 50 cN ±20 %

Contact tolerance: ±0.09 mm

Maximum continuous current: 1.0 A

Typical contact resistance: 70 mohm

Operating temperatures: - 20 to +80 °C

Plunger: CuBe, long-life gold

Spring: silver-plated spring steel

Barrel: stainless steel, uncoated

Connection element: gold-plated CuBe

Tip design: 01 conical shaft 90 °

Type: F207.01, probe with plunger tip 01

Technical specifications
diameter 0.36 mm
Stroke 2.5 mm
Head shape cone
Length 20.3 mm
Material steel
Rated current 1 A
Grid 0.7 mm
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
