F56206B190G100 | Feinmetall

Standard test pin with probe, waffle, Ø 1.37 mm, travel  4.4 mm, pitch 2.54 mm, L 24.7 mm, F56206B190G100

Order No.: 11H4640
EAN: 4099889465907
MPN:
F56206B190G100
Series: F562

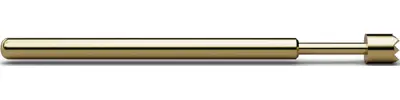

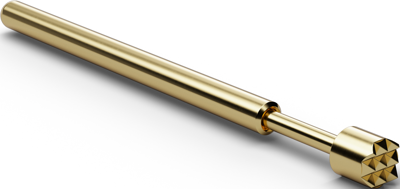

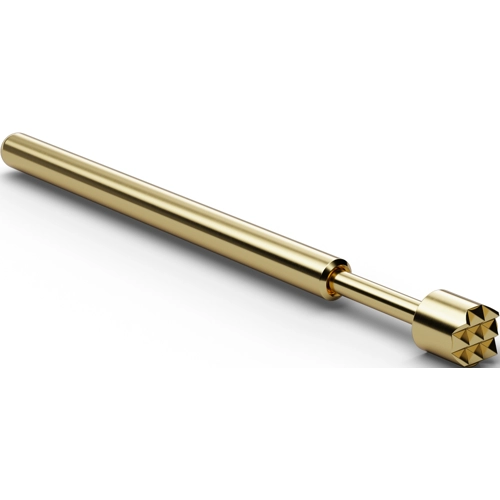

F56206B190G100 Feinmetall Contact Probes Image 1

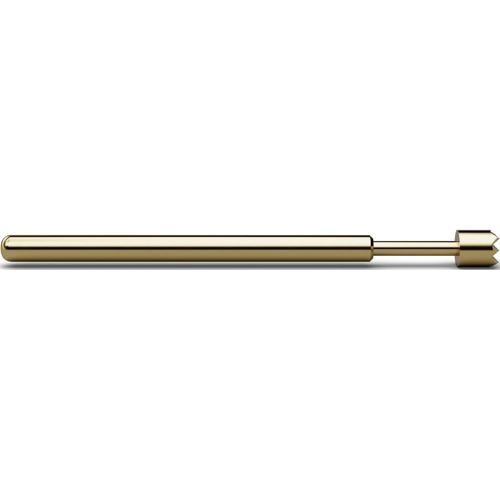

F56206B190G100 Feinmetall Contact Probes Image 2

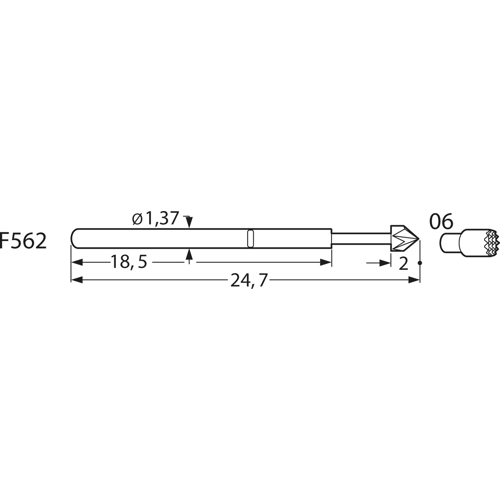

F56206B190G100 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
3.2487 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
32.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
3.2487 €

Standard test probes with tip for 2.54 mm grid, type Feinmetall F562.

For board testing, in-line test systems and automotive applications; Projection height: variable from 6.2 to 12.0 mm. Maximum spring travel: 4.0 mm. Recommended spring travel: 2.7 mm. Prestress: 60 cN. Contact tolerance: ±0.05 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 20 mohm. Barrel: gold-plated new silver. Spring: silver-plated spring steel. Receptacle: gold-plated new silver. Tip designs: 05 concave (cup), 06 serrated (honeycomb), 15 triangular head (pyramid), 18 conical shaft (spear) 30°.

Spring force 100 cN ±20 %, type F562.

Technical attributes (type, plunger with tip design, tip diameter, material, finish (long-life gold for particularly long tool life)): F562.06, probe with plunger tip 06, TD 1.9 mm, CuBe, gold.

Technical specifications
Head shape Waffel
Rated current 5 A
Stroke 4.4 mm
Grid 2.54 mm
Length 24.7 mm
diameter 1.37 mm
Material Kupferberyllium
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
