F56215B190G150 | Feinmetall

Standard test pin with probe, inner cone, Ø 1.37 mm, travel  4.4 mm, pitch 2.54 mm, L 24.7 mm, F56215B190G150

Order No.: 11H4643
EAN: 4099889465938
MPN:
F56215B190G150
Series: F562

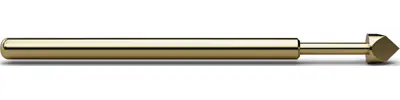

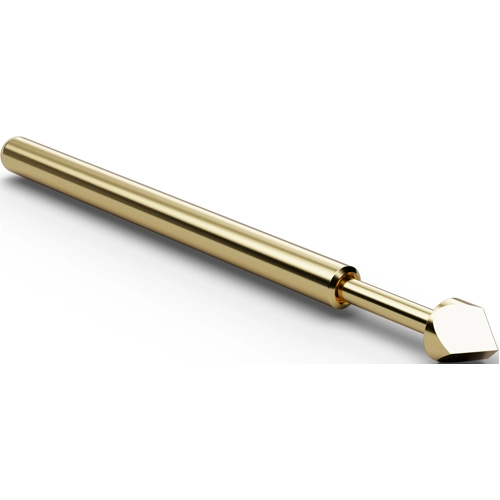

F56215B190G150 Feinmetall Contact Probes Image 1

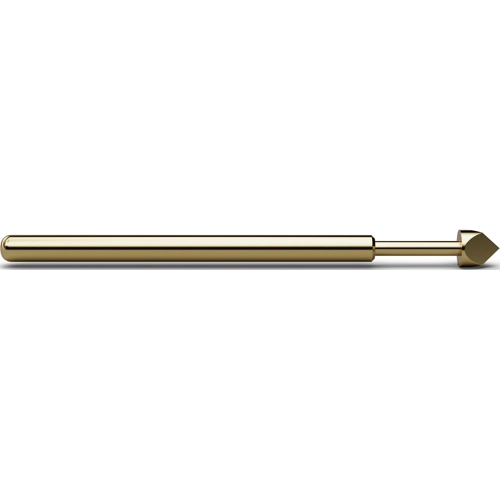

F56215B190G150 Feinmetall Contact Probes Image 2
F56215B190G150 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
3.2487 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
32.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
3.2487 €

Standard test probes with tip for 2.54 mm grid, type Feinmetall F562.

For board testing, in-line test systems and automotive applications; Projection height: variable from 6.2 to 12.0 mm. Maximum spring travel: 4.0 mm. Recommended spring travel: 2.7 mm. Prestress: 60 cN. Contact tolerance: ±0.05 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 20 mohm. Barrel: gold-plated new silver. Spring: silver-plated spring steel. Receptacle: gold-plated new silver. Tip designs: 05 concave (cup), 06 serrated (honeycomb), 15 triangular head (pyramid), 18 conical shaft (spear) 30°.

Spring force 150 cN ±20 %, type F562.

Technical attributes (type, plunger with tip design, tip diameter, material, finish (long-life gold for particularly long tool life)): F562.15, probe with plunger tip 15, TD 1.9 mm, CuBe, gold.

Technical specifications
Head shape Innenkonus
Rated current 5 A
Stroke 4.4 mm
Grid 2.54 mm
Length 24.7 mm
diameter 1.37 mm
Material Kupferberyllium
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
