F58533S105L300 | Feinmetall

Standard test pin with probe, square, Ø 1.37 mm, travel  6.4 mm, pitch 2.54 mm, L 33.3 mm, F58533S105L300

Order No.: 11H4628
EAN: 4099889465808
MPN:
F58533S105L300
Series: F585

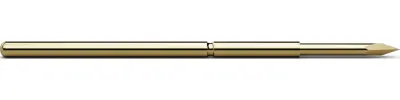

F58533S105L300 Feinmetall Contact Probes Image 1

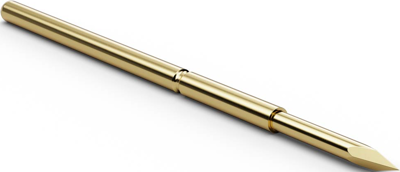

F58533S105L300 Feinmetall Contact Probes Image 2

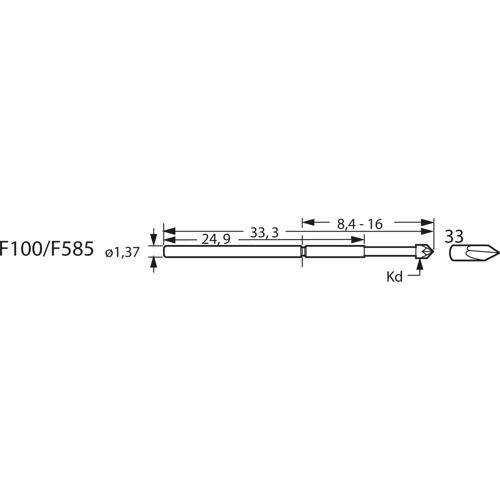

F58533S105L300 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
2.8322 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
28.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
2.8322 €

Standard probes with plunger tip for 2.54 mm grid, type Feinmetall F100/F585.

For assembled or bare PCBs, also suitable for SMD applications; Projecting height: 8.4 to 16 mm. Contact tolerance: ±0.08 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 30 mohm. Barrel: gold-plated new silver. Receptacle: gold-plated new silver, typical contact resistance 30 mohm. Tip designs: 05 concave (cup), 06 serrated (honeycomb), 07 hexagonal (fluted star) 90°, 10 flexible needle, 11 round shaft, 12 round shaft, 14 four-point crown head (self-cleaning), 15 triangular head (pyramid), 18 conical shaft (spear) 30°, 20 four-point crown head with faces, 21 four-point crown head, 33 lance shaft (dagger) 38°, 34 rigid needle head 15°, 36 seven-point crown tulip with lead central point, 37 four-point crown head with faces, 38 lance shaft (dagger) 90°, 43 lance shaft (dagger) 90°, 64 miniature serrated head (honeycomb).

Spring force 300 cN ±20%, type F585.

Maximum spring travel: 6.4 mm. Recommended spring travel: 4.3 mm. Prestress: 50 cN. Contact resistance: typically 20 mohm.

Technical attributes (type, plunger with tip design, tip diameter TD, material, finish (LG is long-life gold for particularly long endurance)): F585.33S105L300, probe with plunger tip 33, TD 1.05 mm, steel, long-life gold.

Technical specifications
Head shape Vierkant
Rated current 5 A
Stroke 6.4 mm
Grid 2.54 mm
Length 33.3 mm
diameter 1.37 mm
Material Stahl
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
