F58833S090L300 | Feinmetall

Long stroke test pin with probe, square, Ø 1.37 mm, travel  12 mm, pitch 2.54 mm, L 39 mm, F58833S090L300

Order No.: 11H5746
EAN: 4099889467024
MPN:
F58833S090L300
Series: F588
Feinmetall

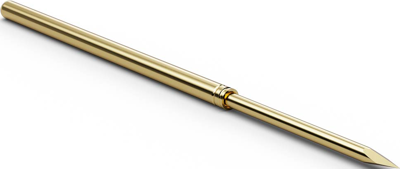

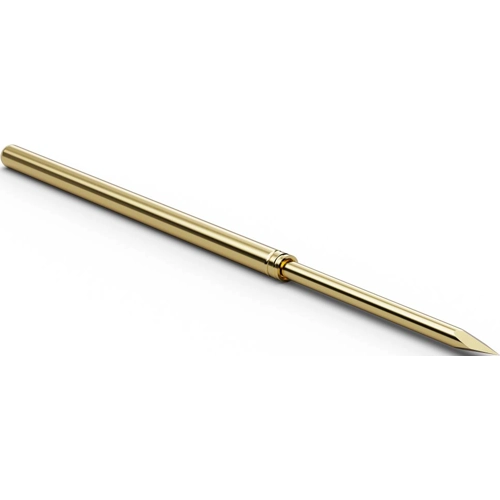

F58833S090L300 Feinmetall Contact Probes Image 1

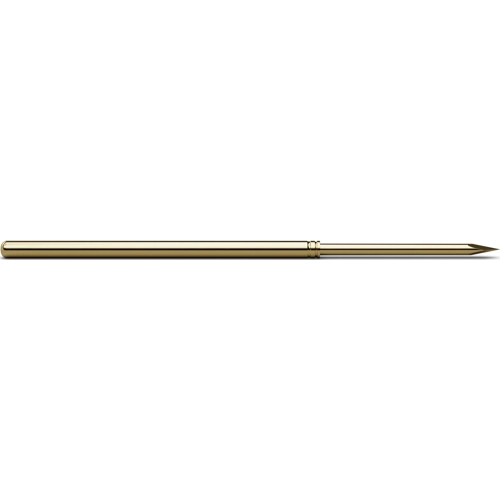

F58833S090L300 Feinmetall Contact Probes Image 2

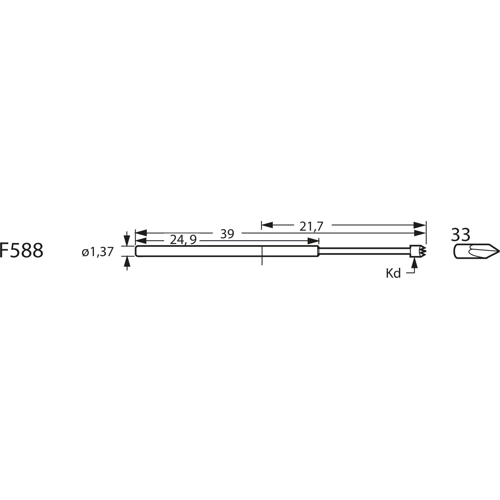

F58833S090L300 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
3.9508 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
3.9508 €

Long travel probes with plunger tip for 2.54 mm grid, type Feinmetall F588.

Primarily for use on loaded PCBs (SMD as well). Often used in combination with pin F585 for two-stage adaptations. The receptacle with press-ring is the same as used with F585 and allows custom projection heights; Projecting height: 14.1 to 21.7 mm. Contact tolerance: ±0.1 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 25 mohm. Barrel: gold-plated new silver. Spring: spring steel, gold-plated. Receptacle: gold-plated new silver. Tip designs: 05 concave (cup), 06 serrated (honeycomb), 15 triangular head (pyramid), 18 conical shaft (spear) 30°, 21 four-point crown head (self-cleaning), 28 four-point crown head, 33 lance shaft (dagger).

Spring force 300 cN ±20 %, type F588.

Maximum spring travel: 11.0 mm. Recommended spring travel: 9.6 mm. Prestress: 70 cN.

Technical attributes (type, plunger with tip design, tip diameter (TD), material, finish (LG is long-life gold for particularly long endurance)): F588.33, probe with plunger tip 33, TD 0.9 mm, steel, long-life gold.

Technical specifications
diameter 1.37 mm
Stroke 12 mm
Head shape square
Length 39 mm
Material steel
Rated current 5 A
Grid 2.54 mm
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
