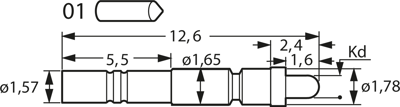

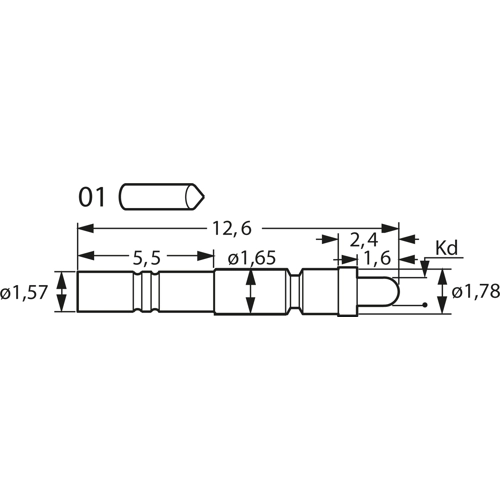

Short-stroke probes with tip for 2.54 mm grid, type Feinmetall F620.
Suitable primarily for interfaces. Thanks to its small projection height it is particularly suited for adaptations with limited overall height. The stranded wire is soldered directly into the spring contact pin; Smallest mounting pitch: 2.1 mm. Projection height: 2.4 mm. Maximum spring travel: 1.6 mm. Recommended spring travel: 1.3 mm. Prestress: 40 cN, spring force with recommended spring travel: 75 cN ±20 %. Pointing precision: ±0.08 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 3.0 A. Typical contact resistance: 30 mohm. Barrel: gold-plated bronze. Spring: silver-plated spring steel. Tip designs: 01 with 90° taper, 11 round shaft.
Technical attributes (type, plunger with tip design, tip diameter, material, surface): F620.01, probe with plunger tip 01, TD 1.2 mm, steel, long-life gold.
