F70211B130G015 | Feinmetall

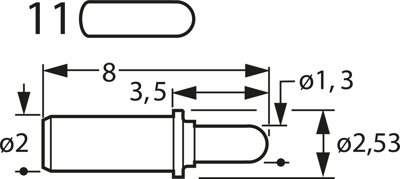

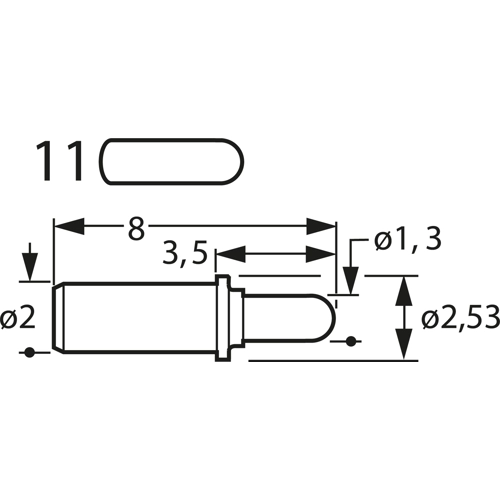

Short stroke test pin with probe, round head, Ø 2 mm, travel 2.2 mm, pitch 2.7 mm, L 8 mm, F70211B130G015
Unit Price (€ / pc.)
4.6410 € *
Available: 4 pcs.
Leadtime: 1 Week **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.0341 €
100 pcs.
3.7366 €
500 pcs.
3.4391 €
1000 pcs.
3.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale
For adaptations with restricted assembly height.
Projection height: 3.7 mm
Maximum spring travel: 2.2 mm
Recommended spring travel: 1.5 mm
Prestress: 40 cN/m
Contact tolerance: ±0.08 mm
Operating temperatures: - 20 to +80 °C
Maximum continuous current: 5.0 A
Typical contact resistance: 20 mohm
Barrel: gold-plated brass
Spring: silver-plated spring steel
Tip designs: 11 round shaft
Table index: type, plunger with tip design, tip diameter (TD), material, surface, spring force at recommended spring travel ±20 %.
Type: F702.11, probe with plunger tip 11, TD 1.3 mm, CuBe, gold, 15 cN/m
Technical specifications
| Head shape | Rundkopf | |
| Rated current | 5 A | |
| Stroke | 2.2 mm | |
| Grid | 2.7 mm | |
| Length | 8 mm | |
| diameter | 2 mm | |
| Material | Kupferberyllium |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
