F70321S078L150 | Feinmetall

Standard test pin with probe, Quadruple-crown, Ø 1.02 mm, travel  6.4 mm, pitch 1.9 mm, L 33 mm, F70321S078L150

Order No.: 11H5659
EAN: 4099889466737
MPN:
F70321S078L150
Series: F703

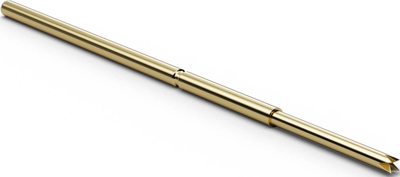

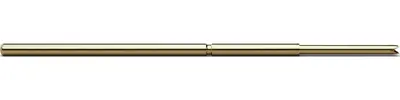

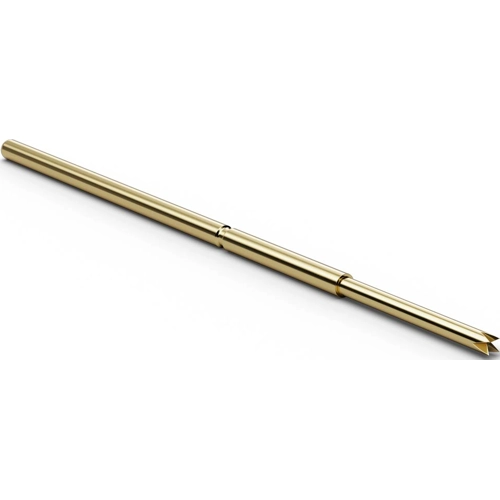

F70321S078L150 Feinmetall Contact Probes Image 1

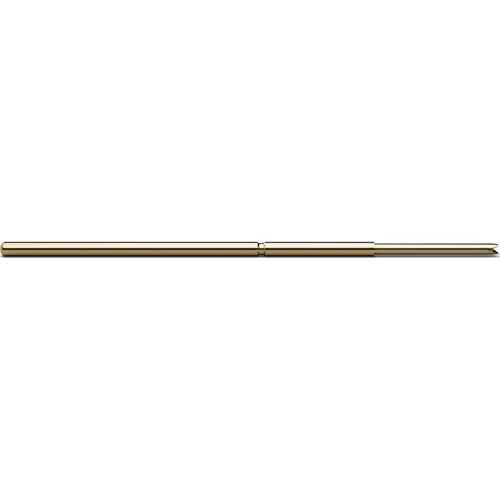

F70321S078L150 Feinmetall Contact Probes Image 2
F70321S078L150 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
3.7009 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
37.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
3.7009 €

Standard probes with plunger tip for 1.9 mm grid, type Feinmetall F075../F703.

For use on assembled and bare PCBs, also for SMD applications. Receptacles H703 and H075 for variable projection height; Projection height: 8.4 to 16 mm. Contact tolerance: ±0.08 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 4.0 A. Barrel: gold-plated new silver (F075 gold-plated bronze). Spring: silver-plated spring steel. Receptacle: gold-plated new silver. Tip designs: 06 serrated (honeycomb), 10 flexible needle, 11 round shaft, 15 triangular head (pyramid), 18 conical shaft (spear) 30°, 21 four-point crown head with faces, 28 four-point crown head, 33 lance shaft (dagger).

With spring force of 150 cN ±20 %.

Maximum spring travel: 6.4 mm. Recommended spring travel: 4.3 mm. Prestress: 70 cN. Spring force at recommended spring travel: 150 cN ±20 %. Typical contact resistance: 50 mohm.

Technical attributes (type, plunger with tip design, tip diameter TD, material, finish (LG is long-life gold for particularly long endurance)): F703.21S078L150, probe with plunger tip 21, TD 0.78 mm, steel, long-life gold.

Technical specifications
Head shape Vierfach-Krone
Rated current 4 A
Stroke 6.4 mm
Grid 1.9 mm
Length 33 mm
diameter 1.02 mm
Material Stahl
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
