F70611B130G150 | Feinmetall

Short stroke test pin with probe, round head, Ø 2.53 mm, travel  1.2 mm, pitch 2.7 mm, L 5.3 mm, F70611B130G150

Order No.: 11H5876
EAN: 4099889467369
MPN:
F70611B130G150
Series: F706
F70611B130G150 Feinmetall Contact Probes
Image may differ
Unit Price (€ / pc.)
4.3197 € *
Available: 625 pcs.
Leadtime: 1 Week **
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
3.7485 €
100 pcs.
3.4748 €
500 pcs.
3.1892 €
1000 pcs.
2.9036 €
*incl. VAT plus shipping costs
**Subject to prior sale

Short-stroke probes with tip for 2.7 mm grid, type Feinmetall F706.

For restricted assembly heights; Projecting height: 3.0 mm. Maximum spring travel: 1.2 mm. Recommended spring travel: 1.0 mm. Contact tolerance: ±0.08 mm. Maximum continuous current: 5.0 A. Typical contact resistance: 20 mohm. Barrel: gold-plated brass. Spring: silver-plated spring steel. Receptacle: gold-plated bronze. Tip designs: 11 round shaft, 29 four-point crown head.

Solder-proof version, type F706.

Prestress: 70 cN. Spring force at recommended spring travel: 150 cN ±20 %. Operating temperatures: - 40 to +250 °C.

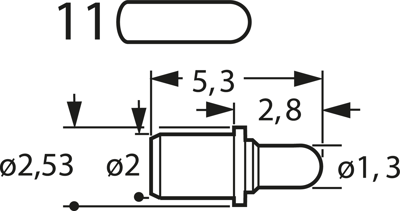

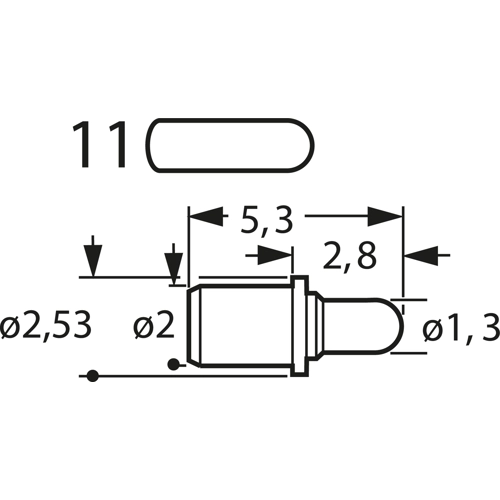

Technical attributes (type, plunger with tip design, tip diameter (TD), material, finish): F706.11B130G150, probe with plunger tip 11, TD 1.3 mm, CuBe, gold.

Technical specifications
Head shape Rundkopf
Rated current 5 A
Stroke 1.2 mm
Grid 2.7 mm
Length 5.3 mm
diameter 2.53 mm
Material Kupferberyllium
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
