F70811B085G100 | Feinmetall

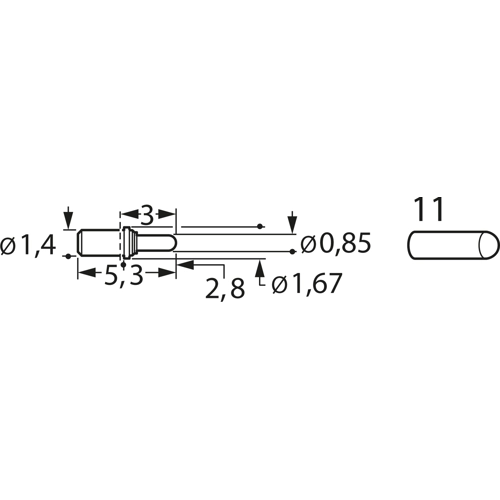

Short stroke test pin with probe, round head, Ø 1.4 mm, travel  1.2 mm, pitch 1.9 mm, L 5.3 mm, F70811B085G100

Order No.: 12H1578
EAN: 4099889468014
MPN:
F70811B085G100
Series: F708

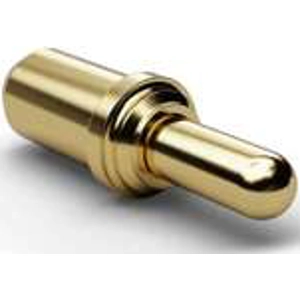

F70811B085G100 Feinmetall Contact Probes
Image may differ
Unit Price (€ / pc.)
4.6410 € *
Available: 52 pcs.
Leadtime: 1 Week **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6410 €
10 pcs.
4.0341 €
100 pcs.
3.7366 €
500 pcs.
3.4391 €
1000 pcs.
3.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale

For restricted heights, type F708.11ST is solder-proof.

Projection height: 3.0 mm

Maximum spring travel: 1.2 mm

Recommended spring travel: 1.0 mm

Prestress: 25 cN

Contact tolerance: ±0.08 mm

Operating temperatures: - 20 to +80 °C (type F708.11ST - 40 to +250 °C)

Maximum continuous current: 3.0 A

Typical contact resistance: 20 mohm

Barrel: gold-plated brass

Spring: silver-plated spring steel

Tip design: 11 round shaft

Type: F708.11, probe with plunger tip 11, TD 0.85 mm, CuBe, gold, 100 cN

Technical specifications
diameter 1.4 mm
Stroke 1.2 mm
Head shape Rundkopf
Length 5.3 mm
Material Kupferberyllium
Rated current 3 A
Grid 1.9 mm
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
