F72211B064G100 | Feinmetall

Threaded probe, round head, Ø 2.3 mm, travel  2.2 mm, pitch 2.54 mm, L 11 mm, F72211B064G100

Order No.: 11H4741
EAN: 4099889466270
MPN:
F72211B064G100
Series: F722

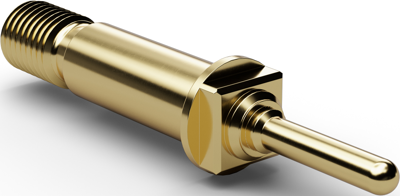

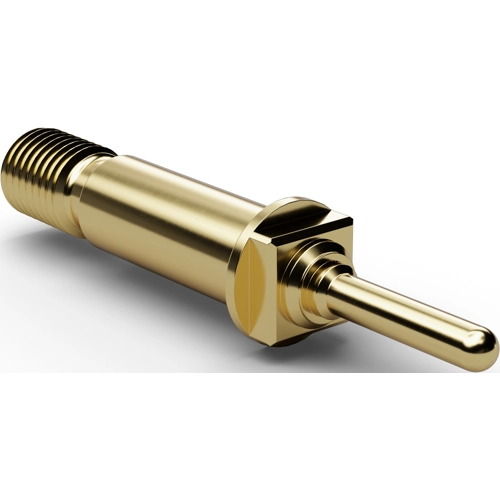

F72211B064G100 Feinmetall Contact Probes Image 1

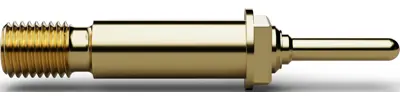

F72211B064G100 Feinmetall Contact Probes Image 2

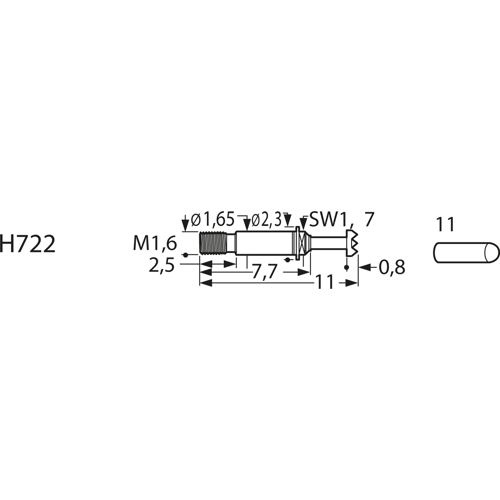

F72211B064G100 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
15.1963 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
15.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
15.1963 €

The short version of the F732 threaded probe can also be used as short-stroke probe, the screw connection with H722LA prevents the probe from becoming loose, the receptacle is vacuum-proof as soon as the wire is soldered on.

Projection height: 4.5 mm

Maximum spring travel: 2.2 mm

Recommended spring travel: 1.5 mm

Prestress: 40 cN

Spring force at recommended spring travel: 100 cN ±20 %

Contact tolerance: ±0.08 mm

Operating temperatures: - 20 to +80 °C

Maximum continuous current: 5.0 A

Typical contact resistance: 25 mohm

Receptacle: gold-plated CuBe

Spring: silver-plated spring steel

Tip design: 11 round shaft

Table index: type, plunger with tip design, tip diameter TD, material, finish.

Type: F722.11, probe with plunger tip 11, TD 0.64 mm, CuBe, gold

Technical specifications
Head shape Rundkopf
Rated current 5 A
Stroke 2.2 mm
Grid 2.54 mm
Length 11 mm
diameter 2.3 mm
Material Kupferberyllium
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
