F73106B180G300 | Feinmetall

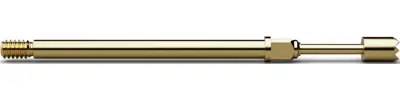

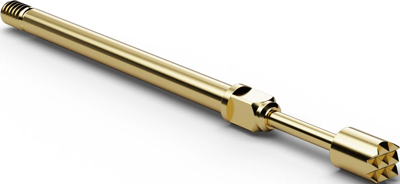

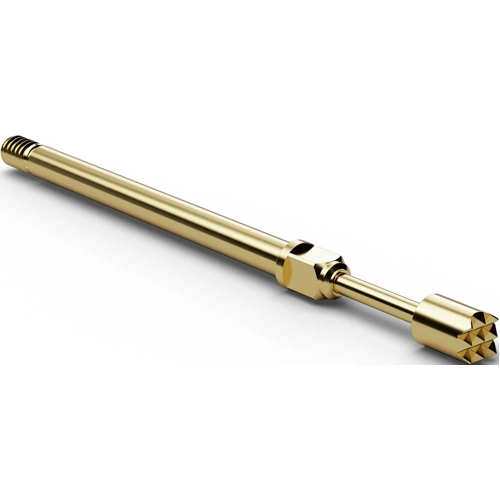

Threaded probe, waffle, Ø 1.37 mm, travel  4.4 mm, pitch 2.2 mm, L 27.9 mm, F73106B180G300

Order No.: 11H4711
EAN: 4099889466133
MPN:
F73106B180G300
Series: F731
Feinmetall
F73106B180G300 Feinmetall Contact Probes Image 1

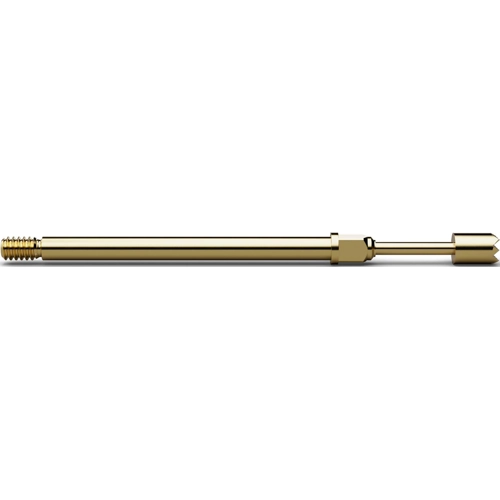

F73106B180G300 Feinmetall Contact Probes Image 2

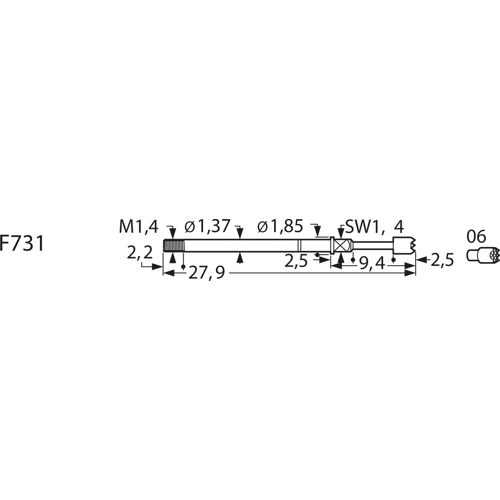

F73106B180G300 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
10.5434 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.54 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.5434 €

Threaded probes for 2.2 mm grid, type Feinmetall F731.

The screw connection with H731LA receptacle prevents the probe from becoming loose, the receptacle is vacuum-proof as soon as the wire is soldered on; Projection height: 12.8 mm. Maximum spring travel: 4.4 mm. Recommended spring travel: 3.5 mm. Prestress: 50 cN. Contact tolerance: ±0.08 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 5.0 A. Typical contact resistance: 30 mohm. Barrel: gold-plated brass. Spring: gold-plated spring steel. Receptacle: gold-plated brass. Tip designs: 06 serrated (honeycomb), 11 round shaft.

Spring force 300 cN ±20 %, type F731.

Technical attributes (type, plunger with tip design, tip diameter TD, material, finish): F731.06, probe with plunger tip 06, TD 1.8 mm, CuBe, gold.

Technical specifications
diameter 1.37 mm
Stroke 4.4 mm
Head shape waffle
Length 27.9 mm
Material copper beryllium
Rated current 5 A
Grid 2.2 mm
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
