F78506B350G300L | Feinmetall

Long stroke test pin with probe, waffle, Ø 2.65 mm, travel  8 mm, pitch 3.5 mm, L 38 mm, F78506B350G300L

Order No.: 11H5806
EAN: 4099889467215
MPN:
F78506B350G300L
Series: F785
Feinmetall

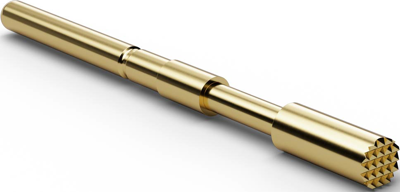

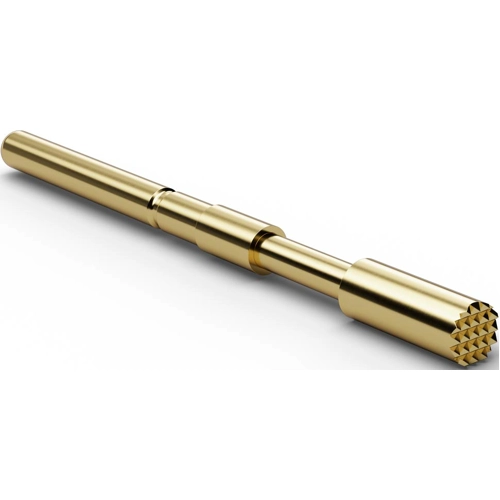

F78506B350G300L Feinmetall Contact Probes Image 1

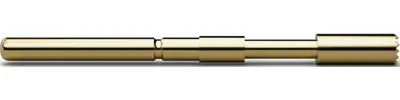

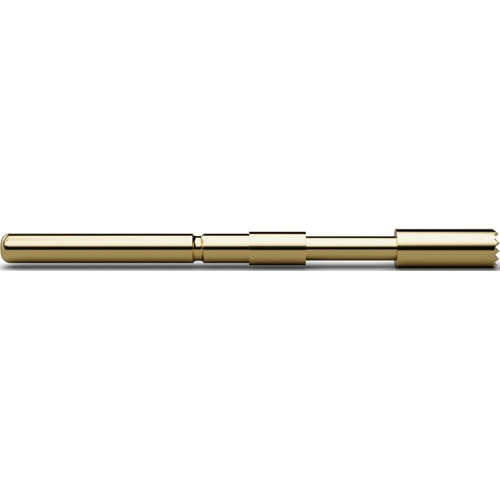

F78506B350G300L Feinmetall Contact Probes Image 2

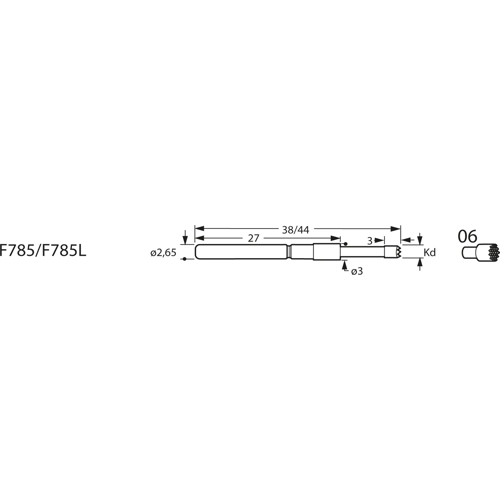

F78506B350G300L Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
8.1634 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.1634 €

Standard probes with tip for 3.5 mm grid, type Feinmetall F785.

For loaded PCBs and SMD applications. Withstands high mechanical stress and high currents; Maximum spring travel: 8.0 mm. Recommended spring travel: 6.4 mm. Prestress: 80 cN. Spring force at recommended spring travel: 300 cN ±20 %. Contact tolerance: ±0.1 mm. Operating temperatures: -20 to +80 °C. Maximum continuous current: 10 A. Typical contact resistance: 25 mohm. Barrel: gold-plated bronze. Spring: silver-plated spring steel. Receptacle: gold-plated new silver. Tip designs: 06 serrated (honeycomb), 14 four-point crown head (self-cleaning).

Probe length 44 mm, type F785..L.

Projection height: 22.2 mm.

Technical attributes (type, plunger with tip design, tip diameter (TD), material, finish (LG is long-life gold for particularly long endurance)): F785.06L, probe with plunger tip 06, TD 3.5 mm, CuBe, gold.

Technical specifications
diameter 2.65 mm
Stroke 8 mm
Head shape waffle
Length 38 mm
Material copper beryllium
Rated current 10 A
Grid 3.5 mm
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
