F79611B176G300 | Feinmetall

Long stroke test pin with probe, round head, Ø 2.65 mm, travel  10 mm, pitch 3.5 mm, L 37 mm, F79611B176G300

Order No.: 11H5767
EAN: 4099889467086
MPN:
F79611B176G300
Series: F796
F79611B176G300 Feinmetall Contact Probes Image 1

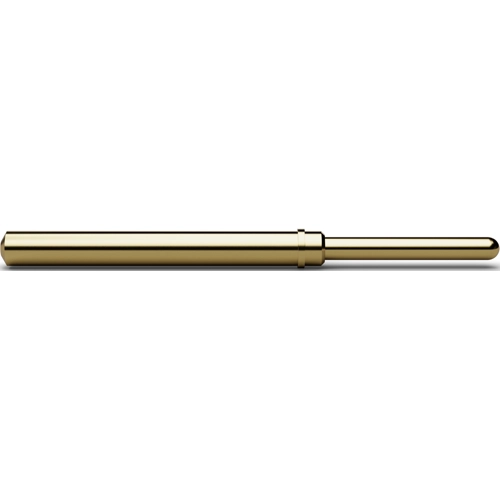

F79611B176G300 Feinmetall Contact Probes Image 2

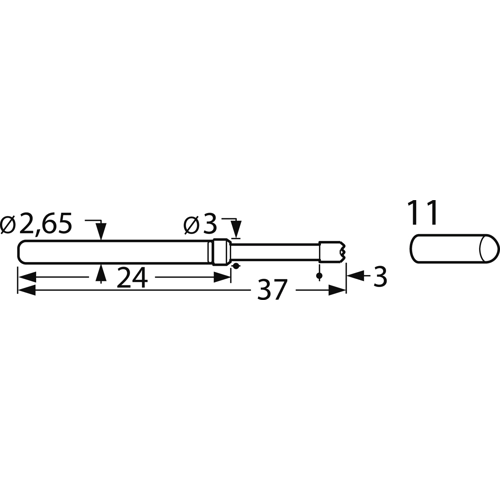

F79611B176G300 Feinmetall Contact Probes Image 3
Image may differ
Unit Price (€ / pc.)
5.0575 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
50.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
5.0575 €

For heavy mechanical stress and high currents.

Projection height: 15.2 mm

Maximum spring travel: 10 mm

Recommended spring travel: 8.0 mm

Prestress: 80 cN

Spring force at recommended spring travel: 300 cN ±20 %

Contact tolerance: ±0.13 mm

Operating temperatures: - 20 to +80 °C

Maximum continuous current: 10 A

Typical contact resistance: 25 mohm

Barrel: gold-plated bronze

Spring: silver-plated spring steel

Tip design: 11 round shaft

Table index: type, plunger with tip design, tip diameter, material, finish.

Type: F796.11, probe with plunger tip 11, TD 1.76 mm, CuBe, gold

Technical specifications
Head shape Rundkopf
Rated current 10 A
Stroke 10 mm
Grid 3.5 mm
Length 37 mm
diameter 2.65 mm
Material Kupferberyllium
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
