I-Z1 | Feinmetall
Interface pin
Order No.: 12H1504
EAN: 4099889467796
MPN:
I-Z1
Unit Price (€ / pc.)
1.0234 € *
Available: 0 pcs.
Leadtime: On Request **

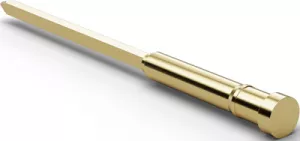

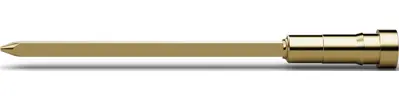

Interface pins as of 2.0 mm grid, type Feinmetall I-G1../I-Z1.
Terminated via the wire-wrap post; material: brass, surface: gold-plated. Maximum continuous current: 10 A, smallest mounting pitch: 2.0 mm.
With barb, type I-Z1.

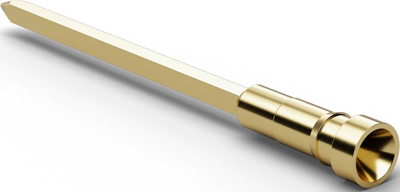

The barb prevents the interface pin from dropping out of the adapter plate. The inner hole with chamfer can be used as centering piece for the contact pin.
Type: I-Z1, interface pin.

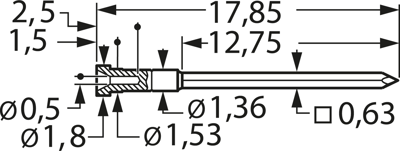

Technical specifications
| Head shape | tip | |
| Length | 17.85 mm | |
| Material | brass | |
| Rated current | 10 A | |
| Grid | 2 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
