P19711B130G130TL080ST | Feinmetall

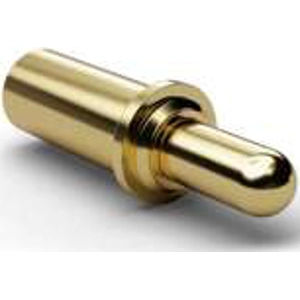

Short stroke test pin with probe, round head, Ø 2 mm, travel 2.2 mm, pitch 2.7 mm, L 8 mm, P19711B130G130TL080ST
Unit Price (€ / pc.)
4.9266 € *
Available: 228 pcs.
Leadtime: 2 Weeks **
Total Price:
4.93 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9266 €
10 pcs.
3.5224 €
25 pcs.
3.0107 €
50 pcs.
2.6180 €
100 pcs.
2.3800 €
*incl. VAT plus shipping costs
**Subject to prior sale
For adaptations with restricted assembly height.
Projection height: 3.7 mm
Maximum spring travel: 2.2 mm
Recommended spring travel: 1.5 mm
Prestress: 40 cN/m
Contact tolerance: ±0.08 mm
Operating temperatures: - 20 to +80 °C
Maximum continuous current: 5.0 A
Typical contact resistance: 20 mohm
Barrel: gold-plated brass
Spring: silver-plated spring steel

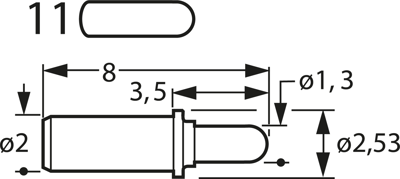

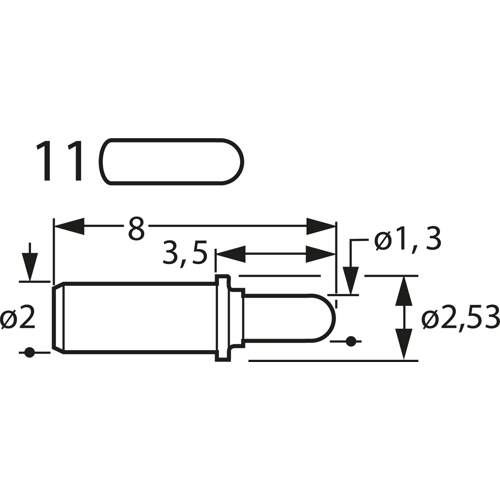

Tip designs: 11 round shaft
Table index: type, plunger with tip design, tip diameter (TD), material, surface, spring force at recommended spring travel ±20 %.
Type: F702.11, probe with plunger tip 11, TD 1.3 mm, CuBe, gold, 130 cN/m
Technical specifications
| Durchmesser | 2 mm | |
| Hub | 2.2 mm | |
| Kopfform | Rundkopf | |
| Länge | 8 mm | |
| Material | Kupferberyllium | |
| Nennstrom | 5 A | |
| Rastermaß | 2.7 mm |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
