5520811020 | Felder

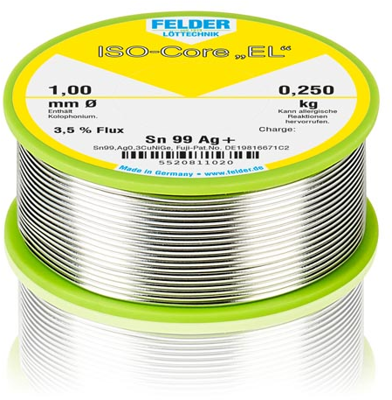

Solder wire, lead-free, Sn99Ag0.3Cu0.7NiGe, Ø 1 mm, 250 g, 5520811020
Order No.: 11L2647
EAN: 4005796550797
MPN:
5520811020
ISO-Core EL Sn99Ag+ 1,0MM 250G
Series: ISO-Core EL Sn99Ag+
Unit Price (€ / pck.)
33.3914 € *
Available: 2 pck.
Next delivery: 14 pck. on 2025-03-11
Leadtime: 5 Weeks **
Total Price:
33.39 € *
Price list
Quantity
Price per unit*
1 pck.
33.3914 €
5 pck.
31.7254 €
15 pck.
30.1308 €
50 pck.
28.6314 €
150 pck.
27.2034 €
*incl. VAT plus shipping costs
**Subject to prior sale
Solder wire, 5520811020, FELDER
Lead-free solder wire is used in industrial assembly production as well as high-temperature applications, for example in the automotive industry (good thermal shock resistance at high temperatures). Continuous temperature resistance at least up to 120°C. Can also be used in older wave soldering systems whose crucibles and nozzles are still made of V2A and do not have protective gassing.
Applications
- Lead-free soldering in the industrial assembly production
- Continuous temperature resistance at least up to 120° C
- A use in older wave soldering units is also possible, whose pots and nozzles are made of V2A and do not have protective gassing
Technical specifications
| Ausführung | Lötdraht | |
| Bleifrei | Yes | |
| Durchmesser | 1 mm | |
| Gewicht | 250 g | |
| Halogenfrei | Yes | |
| Legierung | Sn99Ag0,3Cu0,7NiGe | |
| Schmelzbereich | 217-227 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 83113000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
Signal word
| Gefahreninformationen | Ergänzende |
