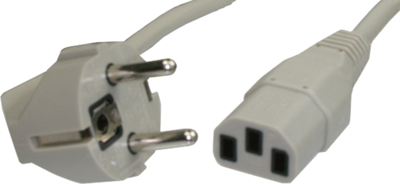

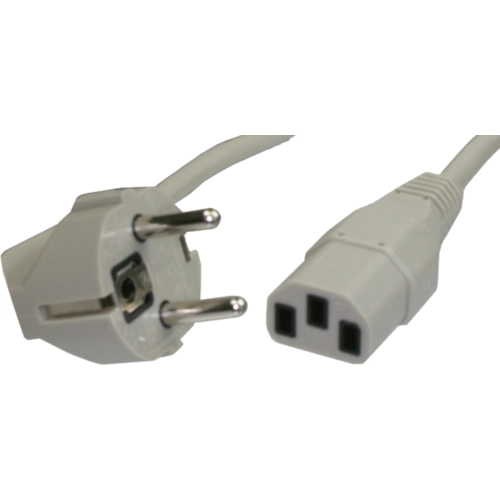

VII-H05VVF3G075-C13/1,50M GR7032 | FELLER
Device connection line, Europe, plug type E + F, angled on C13 socket, straight, H05VV-F3G0.75 mm², gray, 1.5 m, VII-H05VVF3G075-C13/1,50M GR7032
Order No.: 88F300
EAN: 4099891096816
MPN:
VII-H05VVF3G075-C13/1,50M GR7032
Unit Price (€ / pc.)
4.9266 € *
Available: 846 pcs.
Leadtime: 14 Weeks **
Total Price:
4.93 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9266 €
10 pcs.
4.4625 €
100 pcs.
3.9865 €
500 pcs.
3.7604 €
1000 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale
Appliance power cables, type Feller VII/C13.
With ground contact and double insulation. Angled Schuko-style plug to CEE (7) VII, opposing end straight IEC cord connector to EN 60320/C13; Cable type: H05VV-F3G0.75 or 1.0 mm². Rated voltage: 250 VAC. Rated current: 10 A.
Conductor cross-section 0.75 mm².
Type: gray, 1.5 m
Technical specifications
| Anschluss (1) | Stecker Typ E + F, abgewinkelt | |
| Anschluss (2) | C13-Dose, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | grau | |
| Kabel | H05VV-F3G0,75 mm² | |
| Kabellänge | 1.5 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennstrom | 10 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 60320 |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
