VII-H05VVF3G075-C13/2,00M SW9005 | FELLER
Device connection line, Europe, plug type E + F, angled on C13 socket, straight, H05VV-F3G0.75 mm², black, 2 m, VII-H05VVF3G075-C13/2,00M SW9005
Order No.: 88F306
EAN: 4099891096885
MPN:
VII-H05VVF3G075-C13/2,00M SW9005
Unit Price (€ / pc.)
5.3788 € *
Available: 297 pcs.
Leadtime: 14 Weeks **
Total Price:
5.38 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3788 €
10 pcs.
4.8671 €
100 pcs.
4.3554 €
500 pcs.
4.0936 €
1000 pcs.
3.7128 €
*incl. VAT plus shipping costs
**Subject to prior sale

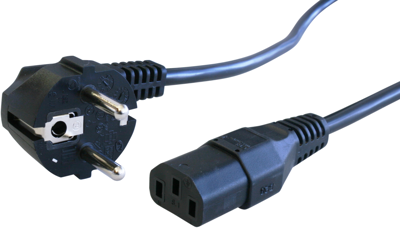

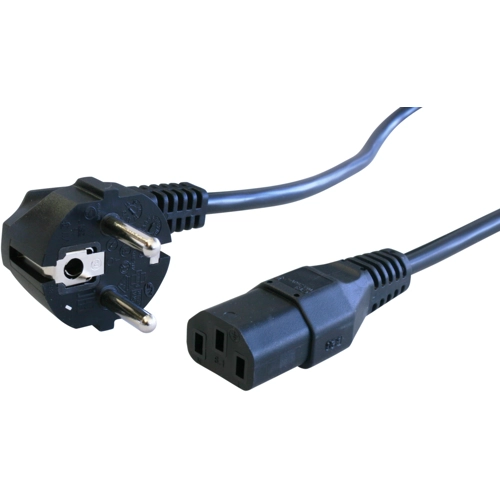

Appliance power cables, type Feller VII/C13.
With ground contact and double insulation. Angled Schuko-style plug to CEE (7) VII, opposing end straight IEC cord connector to EN 60320/C13; Cable type: H05VV-F3G0.75 or 1.0 mm². Rated voltage: 250 VAC. Rated current: 10 A.
Conductor cross-section 0.75 mm².
Type: black, 2.0 m
Technical specifications
| Anschluss (1) | Stecker Typ E + F, abgewinkelt | |
| Anschluss (2) | C13-Dose, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | schwarz | |
| Kabel | H05VV-F3G0,75 mm² | |
| Kabellänge | 2 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennstrom | 10 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 60320 |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
