VII-H05VVF3G075-G30+0492/1,50M GR7032 | FELLER

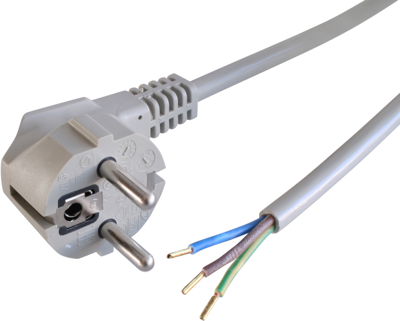

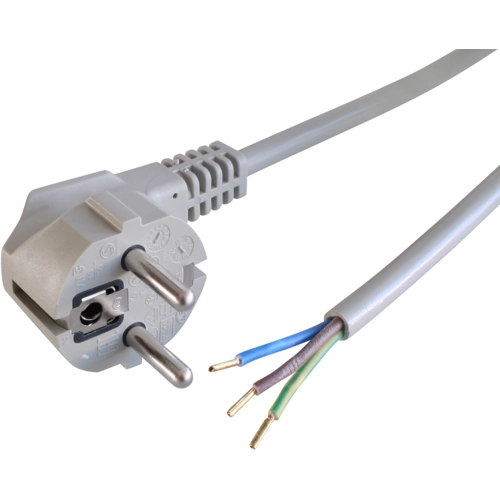

Connection line, Europe, plug type E + F, angled on open end, H05VV-F3G0.75 mm², gray, 1.5 m, VII-H05VVF3G075-G30+0492/1,50M GR7032
Order No.: 88F266
EAN: 4099891096557
MPN:
VII-H05VVF3G075-G30+0492/1,50M GR7032
Unit Price (€ / pc.)
1.7850 € *
Available: 170 pcs.
Leadtime: 14 Weeks **
Power cables, type SGS../SWS.
With grounding terminal. Molded Schuko-style plug to DIN 49441 on one end, other end stripped and dressed with wire end ferrules (types with the additional designation Sn with tinned wire ends.); Cable type: CEE (13) 53.. (H05VV-F3G..) compliant with VDE, KEMA-KEUR etc. Type 13: cross-section 3 x 0.75 mm². Type 15: cross-section 3 x 1.5 mm².
With angled Schuko-style plug, type SWS.
Technical attributes (type, color, length): SWS 13, gray, 1.5 m
Technical specifications
| Anschluss (1) | Stecker Typ E + F, abgewinkelt | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | grau | |
| Kabel | H05VV-F3G0,75 mm² | |
| Kabellänge | 1.5 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 0,75 mm² | |
| Nennstrom | 10 A | |
| Norm Anschluss 1 | CEE (7) VII |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
