VII-H05VVF3G100-C13/3,00M GR7032 | FELLER
Device connection line, Europe, plug type E + F, angled on C13 socket, straight, H05VV-F3G1.0 mm², gray, 3 m, VII-H05VVF3G100-C13/3,00M GR7032
Order No.: 88F3042
EAN: 4099891096854
MPN:
VII-H05VVF3G100-C13/3,00M GR7032
Unit Price (€ / pc.)
7.5327 € *
Available: 1,320 pcs.
Leadtime: 14 Weeks **
Total Price:
7.53 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5327 €
10 pcs.
6.8187 €
100 pcs.
6.0928 €
500 pcs.
5.7358 €
1000 pcs.
5.2003 €
*incl. VAT plus shipping costs
**Subject to prior sale

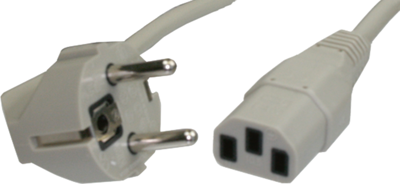

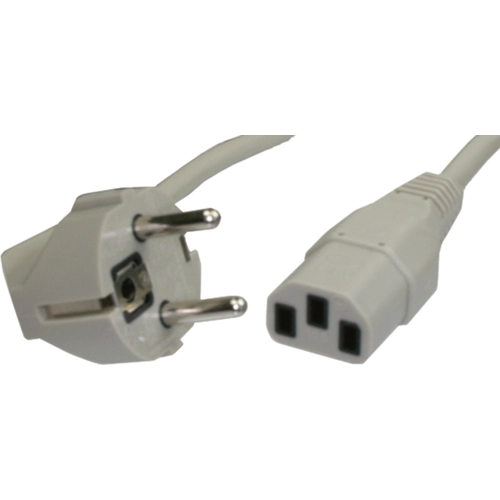

Appliance power cables, type Feller VII/C13.
With ground contact and double insulation. Angled Schuko-style plug to CEE (7) VII, opposing end straight IEC cord connector to EN 60320/C13; Cable type: H05VV-F3G0.75 or 1.0 mm². Rated voltage: 250 VAC. Rated current: 10 A.
Conductor cross-section 1.0 mm².
Type: gray, 3.0 m
Technical specifications
| Anschluss (1) | Stecker Typ E + F, abgewinkelt | |
| Anschluss (2) | C13-Dose, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | grau | |
| Kabel | H05VV-F3G1,0 mm² | |
| Kabellänge | 3 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 1,0 mm² | |
| Nennstrom | 10 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 60320 |
Download
Logistics
| Ursprungsland | AT |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
