2302-1300 H RAL 1019 | Feltron-Zeissler

19 inch desktop enclosure, 3 U, (W x H x D) 450 x 170 x 370 mm, steel, gray, 2302-1300 H RAL 1019

Order No.: 70H6960
EAN: 4099889551174
MPN:
2302-1300 H RAL 1019
Feltron-Zeissler
2302-1300 H RAL 1019 Feltron-Zeissler 19" Enclosures Image 1
2302-1300 H RAL 1019 Feltron-Zeissler 19" Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
139.4918 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
139.49 € *
Price list
Quantity
Price per unit*
1 pcs.
139.4918 €
5 pcs.
130.6858 €
10 pcs.
122.5224 €
*incl. VAT plus shipping costs
**Subject to prior sale

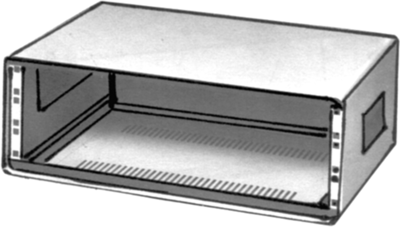

1Bench enclosures, 19-inch, type Feltron-Zeissler 2302.

With front and rear hole grids for mounting 19-inch modules, non-adjustable sliding rails formed by two supporting brackets in the base plate. Compliant with DIN 41494, made of 1.0 mm steel sheet (1.5 mm rear panel), floor and rear panel with venting slots, each side part with 1 plastic handle shell; Finish: fine-structure varnish, enclosure gray-beige RAL 1019, rear panel and shutters gray-brown RAL 8019.

With 370 mm depth, type 2302.

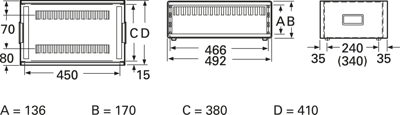

Dimensions: C 380 mm, D 410 mm. Weight: 3U/6.5 kg, 6U/9.5 kg.

Technical attributes (type, HU size, dimensions A and B): 1300, 3U, A 136.0, B 170.0 mm.

Technical specifications
Version table enclosure
Width 450 mm
Colour gray
Height 170 mm
Material steel
cutting pitch differential 3 U
Depth 370 mm
Logistics
Country of origin DE
Customs tariff number 84879090
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
