2009-0100-RAL 1019 | Feltron-Zeissler
Die-cast aluminum enclosure, (L x W x H) 186 x 125 x 65 mm, gray beige (RAL 1019), IP40, 2009-0100-RAL 1019
Unit Price (€ / pc.)
44.8511 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
44.85 € *
Price list
Quantity
Price per unit*
25 pcs.
44.8511 €
50 pcs.
42.1022 €
*incl. VAT plus shipping costs
**Subject to prior sale

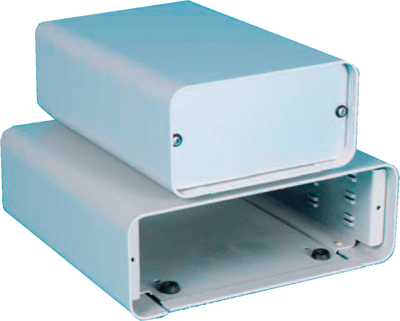

Steel/aluminum enclosures, type Feltron-Zeissler 2009.
For easy and quick mounting; Varnishing: DD-structure varnish, gray-beige (RAL 1019) or light-gray (RAL 7035). Front panel and rear panel 2.0 mm aluminum, anodized natural-colored. Units delivered: sheet metal shell, bottom, front panel, rear panel, 4 feet and a set of standardized parts (screws). Options: type 0100 for inserting a 100 mm Eurocard (longitudinal), type 0110 for (crosswise) inserting a 160 mm Eurocard.
Gray-beige (RAL 1019), type 2009.

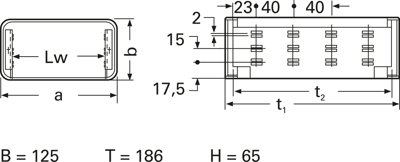

Technical attributes (type, size, overall dimensions D/sketch dimension t1,/sketch dimension a, /H sketch dimension b): 0100, size 1A, W 125, D 186, H 65 mm.
Technical specifications
| Width | 125 mm | |
| Colour | gray beige | |
| Height | 65 mm | |
| Length | 186 mm | |
| Material | die-cast aluminum | |
| RAL number | 1019 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 76169910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
