2009-0150-RAL 7035 | Feltron-Zeissler

Die-cast aluminum enclosure, (L x W x H) 266 x 305 x 105 mm, gray beige (RAL 1019), IP40, 2009-0150-RAL 7035

Order No.: 70H4128
EAN: 4099889545418
MPN:
2009-0150-RAL 7035
Series: 2009
Feltron-Zeissler

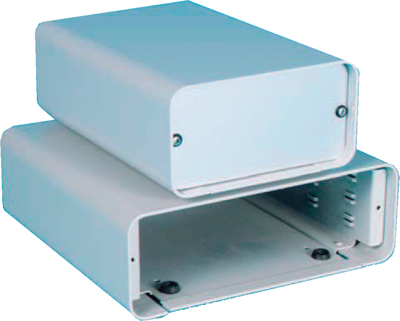

2009-0150-RAL 7035 Feltron-Zeissler General Purpose Enclosures Image 1
2009-0150-RAL 7035 Feltron-Zeissler General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
77.9093 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
77.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
77.9093 €

Steel/aluminum enclosures, type Feltron-Zeissler 2009.

For easy and quick mounting; Varnishing: DD-structure varnish, gray-beige (RAL 1019) or light-gray (RAL 7035). Front panel and rear panel 2.0 mm aluminum, anodized natural-colored. Units delivered: sheet metal shell, bottom, front panel, rear panel, 4 feet and a set of standardized parts (screws). Options: type 0100 for inserting a 100 mm Eurocard (longitudinal), type 0110 for (crosswise) inserting a 160 mm Eurocard.

Light gray (RAL 7035), type 2009.

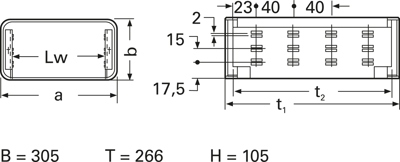

Technical attributes (type, size, overall dimensions D/sketch dimension t1,/sketch dimension a, /H sketch dimension b): 0150, size 3, W 305, D 266, H 105 mm.

Technical specifications
Width 305 mm
Colour gray beige
Height 105 mm
Length 266 mm
Material die-cast aluminum
RAL number 1019
Degree of protection (IP) IP40
Logistics
Country of origin DE
Customs tariff number 76169910
Compliance
RoHS conform Yes
Date of RoHS guidelines 6/8/11
SVHC free Yes
