483182300060 | Finder
Coupling relay 1 Form C (NO/NC), 230 V (AC), 10 A, 250 V (AC), 483182300060
Unit Price (€ / pc.)
21.1225 € *
Available: 0 pcs.
Leadtime: On Request **

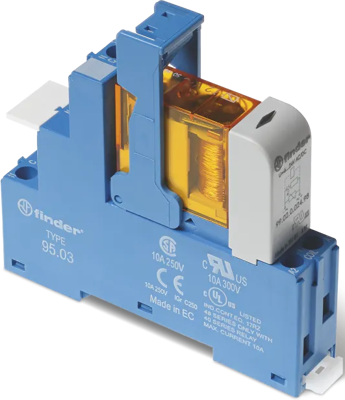

Coupling relay, 483182300060, Finder
The 483182300060 is a coupling relay, 1 CO 10 A, screw terminals, 15.8 mm wide for interfacing with PLC systems.
Features
- Coil Indication and EMC suppression module
- Identification label
- Cadmium-free contacts
Applications
- Control panels
- Medical and dentistry
- Panels for electrical distribution
- Hoists and cranes
Technical specifications
| Connection | screw connection | |
| Version | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| LED display | Yes | |
| Rated voltage (AC) | 250 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP20 | |
| Coil voltage (AC) | 230 V | |
| Status display | LED, green |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
