49.31.9.024.0050 | Finder
Coupling relay 1 Form C (NO/NC), 24 V (DC), 900 Ω, 10 A, 250 V (AC), 49.31.9.024.0050
Unit Price (€ / pc.)
18.3260 € *
Available: 4 pcs.
Leadtime: 1 Week **
Total Price:
18.33 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3260 €
10 pcs.
16.1126 €
50 pcs.
15.0178 €
150 pcs.
14.3633 €
*incl. VAT plus shipping costs
**Subject to prior sale

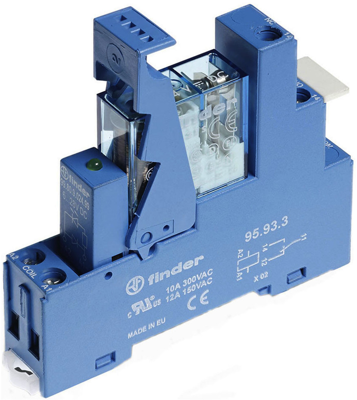

Coupling relay, 49.31.9.024.0050, Finder
Coupling relay for DIN-rail with screw terminals 1 CO contact 10 A / 250 V AC coil voltage 24 V DC contact material AgNi, with integrated LED and EMC suppression
Features
- Ideal interface for PLC and electronic systems
- AC coils & DC coils
- Instant ejection of relay using plastic retaining clip
- Supply status indication and coil suppression module
Technical specifications
| Connection | screw connection | |
| Version | coupling relay | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Rated voltage (AC) | 250 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP40 | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 900 Ω | |
| Status display | LED, green |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
