20.22.9.012.4000 | Finder

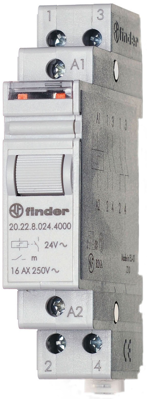

Impulse switch, 20.22.9.012.4000, Finder

Impulse switch for 35 mm rail, 2 NO contacts for 16 A / 250 V AC, contact material: AgSnO2, max. switching capacities at 230 V AC: AC1 4000 VA, AC15 750 VA, incandescent and halogen lamps 2000 W, fluorescent lamps compensated 750 W, fluorescent lamps uncompensated 1000 W, energy saving lamps 400 W, LED (230 V AC) 400 W, LV halogen lamps or LED with ECG 400 W, LV halogen lamps or LED with CCG 800 W. Coil data: 12 V DC, 5 W, 27 Ohm, width 17.5 mm, switching sequence: on on / off off, test button and mechanical switch position indicator, relay protection type: IP 20

Features

• 17.4 mm wide
• Test button with mechanical indicators
• AC coils and DC coils
• Cadmium free contact material
