26.02.8.230.0000 | Finder
Impulse switch, 2 Form A (N/O), 230 VAC, 10 A, 400 V, 400 W, 26.02.8.230.0000
Unit Price (€ / pc.)
9.7342 € *
Available: 3 pcs.
Leadtime: 1 Week **

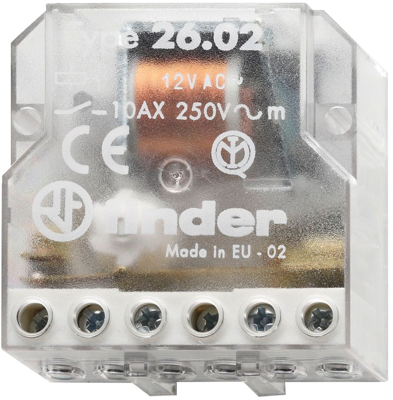

Impulse switch, 26.02.8.230.0000, Finder
Impulse switch for mounting in flush-mounted box or on chassis, 2 NO contacts for 10 A / 250 V AC, max. switching capacities at 230 V AC: AC1 2500 VA, AC15 500 VA, incandescent and halogen lamps 800 W, fluorescent lamps compensated 360 W, fluorescent lamps uncompensated 400 W, energy saving lamps 200 W, LED (230 V AC) 200 W, LV halogen lamps or LED with electronic ballast 200 W, LV halogen lamps or LED with electronic ballast 400 W, switching sequence: off off/on on, contact material AgNi, coil data: 230 V AC, 4.5 VA, 6250 Ohm, relay protection class: IP 20
Technical specifications
| Dimmable | No | |
| Size | 39.6 x 22 x 46.6 mm | |
| Lamp wattage | 400 W | |
| Assembly | panel mounting | |
| Rated voltage (AC) | 400 V | |
| Rated current | 10 A | |
| Latching switching function | 2 Form A (N/O) | |
| Control Voltage | 230 VAC |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
