22.21.9.024.4000 | Finder

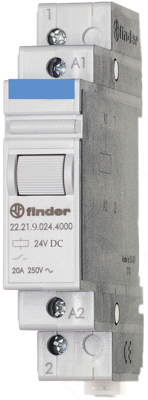

Relay, 1 Form A (N/O), 24 V (DC), 20 A, 400 V (AC), 22.21.9.024.4000
Unit Price (€ / pc.)
23.9071 € *
Available: 22 pcs.
Leadtime: 1 Week **
Total Price:
23.91 € *
Price list
Quantity
Price per unit*
1 pcs.
23.9071 €
5 pcs.
22.4791 €
15 pcs.
21.6104 €
50 pcs.
20.6584 €
150 pcs.
19.7897 €
*incl. VAT plus shipping costs
**Subject to prior sale
Installation relays, type Finder Serie 22.
For DIN rails, with test button; Contact material: AgSnO2. Continuous current: max. 20 A. Inrush current: max. 30 A. Rated voltage: 250 VAC. Switching voltage: 400 VAC. Breaking capacity AC1/AC15 (230 VAC): max. 5000/1000 VA. Contact load: (230 V): filament bulbs 1000 W, fluorescent lamps 360 W with ballast. Switching load: min. 1000 mW (10 V/10 mA). Duty cycle: max. 100%. Dielectric strength coil/contact-coil (1.2/50 µm): 4.0 kV. Degree of protection: IP 20. Ambient temperatures: –40 to +40 °C.
Technical attributes (type, rated coil voltage, contact type): 22.21.9.024.4000, 24 VDC, 1 x NO
Technical specifications
| Connection | screw connection | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 20 A | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
