623392204040 | Finder
Relay, 3 Form C (NO/NC), 220 V (DC), 37300 Ω, 16 A, 400 V (AC), 623392204040
Unit Price (€ / pc.)
29.0717 € *
Available: 0 pcs.
Leadtime: On Request **

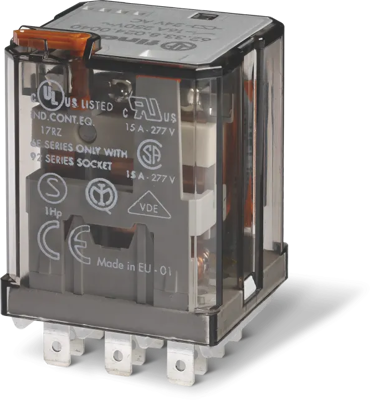

Power relay, 623392204040, Finder
The 623392204040 is a power relay, 16 A, for plug-in mounting on socket/Faston 187, 3 CO contacts.
Features
- UL Listing (relay/socket/jumper link)
- LED, lockable test button and standard mechanical indicator
- Reinforced insulation between coil and contacts according to EN 60335-1; creepage and clearance of 8/6 mm
- Variant with SELV separator between coil and contacts
- Cadmium-free contact material variant
- Sockets and accessories
Applications
- Road / tunnel lighting
- Control and management of electric power
- Control panels
- Circuit breakers and switches
- Industrial motors
Technical specifications
| Connection | plug-in connection | |
| Contact type | 3 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 16 A | |
| Coil voltage (DC) | 220 V | |
| Coil resistance | 37300 Ω |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
