628282304300 | Finder
Relay, 2 Form A (N/O), 230 V (AC), 500 Ω, 16 A, 400 V (AC), 628282304300
Unit Price (€ / pc.)
19.9801 € *
Available: 0 pcs.
Leadtime: On Request **

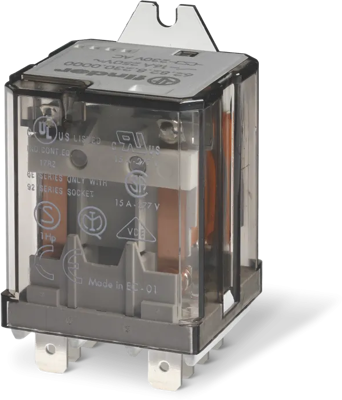

Power relay, 628282304300, Finder
The 628282304300 is a power relay with 2 NO and 250 Faston (6.3 x 0.8 mm) connections.
Features
- LED, mechanical indicator & test button options
- Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance
- SELV coil-contact separator option
- Cadmium-free contact material option
Applications
- Road / tunnel lighting
- Control and management of electric power
- Control panels
- Circuit breakers and switches
- Industrial motors
Technical specifications
| Connection | faston plug | |
| Contact type | 2 Form A (N/O) | |
| Contact material | AgSnO2 | |
| Switching Voltage (AC) | 400 V | |
| switching current | 16 A | |
| Coil voltage (AC) | 230 V | |
| Coil resistance | 500 Ω |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
