7L.43.0.024.0200 | Finder
LED switch cabinet light, 6 W, 24 V, 600 lm, 5000 K, 120°, 7L.43.0.024.0200
Unit Price (€ / pc.)
81.4198 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
81.42 € *
Price list
Quantity
Price per unit*
1 pcs.
81.4198 €
5 pcs.
76.5408 €
15 pcs.
73.5896 €
*incl. VAT plus shipping costs
**Subject to prior sale

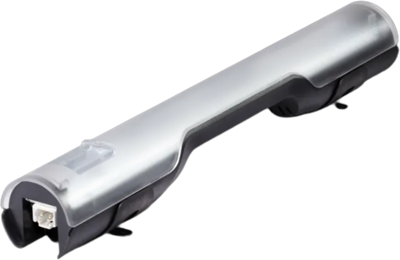

LED control cabinet light, 7L.43.0.024.0200, Finder
The LED panel light can be mounted anywhere in the control cabinet thanks to the direct magnetic mounting or screw-on metal clips. It emits a 5000 K cool white light with low power consumption and has a beam angle of 120°.
Features
- 600 lumens, 6 W
- Plug-in terminals for the connection to a single or multiple units (up to 7 lamps)
Technical specifications
| Radiation angle | 120 ° | |
| Version | LED light | |
| Width | 46 mm | |
| Colour | transparent | |
| Colour temperature | 5000 K | |
| Length | 310.6 mm | |
| Power | 6 W | |
| Luminous flux | 600 lm | |
| max. operating temperature | 55 °C | |
| min. operating temperature | -30 °C | |
| average nominal life | 60000 h | |
| Rated voltage | 24 V | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85395200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
