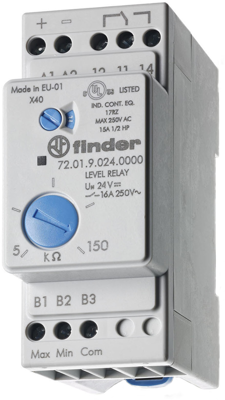

72.01.9.024.0000 | Finder

Level relay, 1 Form C (NO/NC), 24 V (DC), 16 A, 24 V (DC), 24 V (AC), 72.01.9.024.0000

Order No.: 30G9062
EAN: 8012823302171
MPN:
72.01.9.024.0000
720190240000
Series: 72
Finder
72.01.9.024.0000 Finder Monitoring Relays
Image may differ
Unit Price (€ / pc.)
63.7602 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
63.76 € *
Price list
Quantity
Price per unit*
1 pcs.
63.7602 €
5 pcs.
59.9403 €
15 pcs.
57.6436 €
50 pcs.
55.0970 €
150 pcs.
52.7884 €
*incl. VAT plus shipping costs
**Subject to prior sale

Level relay, 72.01.9.024.0000, Finder

The 72.01.9.024.0000 is a level control relay for conductive liquids with adjustable sensitivity (5 - 150) kΩ, selectable intervention delay (0.5 s or 7 s). Filling or emptying function switch selectable. This control relay is also available for 400 V supply. The adjustable sensitivity (5- 450) kΩ version can also be equipped with a contact for low loads down to 5 V – 1 mA.

Features

  • Filling and emptying functions
  • LED indicator
  • Assembly on 35 mm rail (EN 60715)
Technical specifications
Connection screw connection
Contact type 1 Form C (NO/NC)
Contact material AgNi
Switching Voltage (AC) 24 V
Switching Voltage (DC) 24 V
switching current 16 A
Coil voltage (DC) 24 V
Logistics
Country of origin IT
Customs tariff number 90261029
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Cadmium oxide
