7U.00.8.230.0012 | Finder

Control cabinet outlet, yellow, 16 A/230 V, Germany, IP20, 7U.00.8.230.0012

Order No.: 06N4881
EAN: 8012823444406
MPN:
7U.00.8.230.0012
7U0082300012
Series: 7U
Finder
7U.00.8.230.0012 Finder Sockets, Device Sockets Image 1
7U.00.8.230.0012 Finder Sockets, Device Sockets Image 2
Image may differ
Unit Price (€ / pc.)
9.3177 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
9.32 € *
Price list
Quantity
Price per unit*
1 pcs.
9.3177 €
5 pcs.
8.7941 €
10 pcs.
8.2824 €
50 pcs.
7.7588 €
100 pcs.
7.2471 €
*incl. VAT plus shipping costs
**Subject to prior sale

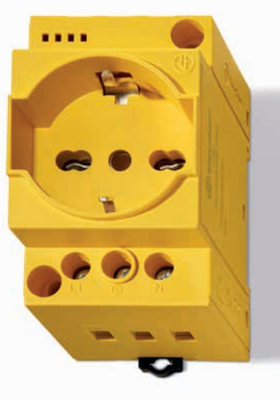

Power outlet, 7U.00.8.230.0012, Finder

The safe and approved power outlet is the perfect device for use within electrical enclosures.

Features

  • Yellow color (RAL 1021)
  • With voltage presence LED in socket
  • Compatible with Schuko and Italian Bipasso
  • Up to 16 A
  • Panel or rail 35 mm (EN 60715) mounting
Technical specifications
Connection screw connection
Version control cabinet outlet
Colour yellow
Hinged cover available No
Country code Germany
Nominal power 16 A/230 V
Degree of protection (IP) IP20
Logistics
Country of origin IT
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
