10038783 | Fischer Elektronik

Name: Miniature fan unit, LAM, Fan units, 40 mm
Brand: Fischer Elektronik
SKU: 80B4989
Price: 61.64 EUR
Availability: OutOfStock

Miniature fan unit, LAM, Fan units, 40 mm

Order No.: 80B4989

EAN: 4099889489224

MPN:

10038783

LAM 4 K 100 12

Series: LAM

10038783 Fischer Elektronik Fan Units Image 1

10038783 Fischer Elektronik Fan Units Image 2

Image may differ

Key Specification:

Rated voltage 12 V

Width 40 mm

Height 25 mm

Depth 40 mm

Ordering Information:

Semiconductors and mounting accessories not included.

Download Datasheet Technical specifications

Unit Price (€ / pc.)

61.6420 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

61.64 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

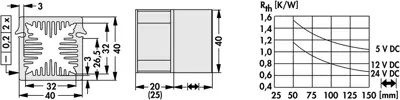

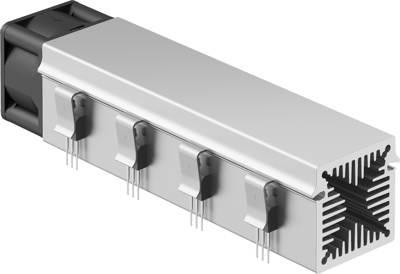

Miniature fan units, type Fischer LAM 4 K.

Made of silver-colored anodized aluminum, with grooves for snap-in THFU transistor retention springs, ebm-papst axial fan, component installation on all sides. Heatsink lenght: 100 mm.

With 12 VDC fan.

Technical specifications

	Width	40 mm
	Height	25 mm
	Type of bearing	Extruded
	max. operating temperature	60 °C
	min. operating temperature	-20 °C
	Rated voltage	12 V
	Sound pressure level	46 db
	Depth	40 mm
